| Plant Name: | Small Rabbit / Bunny Feed Pellet Production Plant With Oil Addition System | Yield: | 5T/H |
|---|---|---|---|
| Main Machine: | Crusher,mixer,pellet,crumbler,cooler,screener Machine | Application: | Rabbit Feed |
| Pellet Size: | 0.9-10mm | Power: | 300kw |
| High Light: | feed pellet plant,animal feed processing plant |
||
Small Rabbit Pellet Production Equipment , Oil Addition System Feed Pellet Plant
Introduction of Rabbit/Bunny Feed Pellet Production Plant
This type rabbit/bunny feed pellet production plant use Double Steam Conditioner ring die feed pellet machine, make the final pellet More mature, more conducive to animal absorption, and More nutritious and delicious.
Use Feed crumbler machine, can application to small rabbit.
Craft of Rabbit/Bunny Feed Pellet Production Plant
Materials crusher--Mixer--Pelletizer--crumbler(according customer need)--Feed cooler--Screener machine--Packing machine

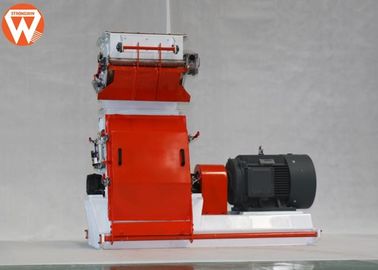

Hammer mill crusher machine
Be tested by the high-precision balancing machine, then the hammer mill run more smoothly, which reduces noise and prolongs bearing’s life.
Feeding inlet on the top matches all kinds of feeding mechanisms.
The coarse or fine grinding can be realized by adjusting the gap between the hammer and sifter, thus one machine can be used as two.

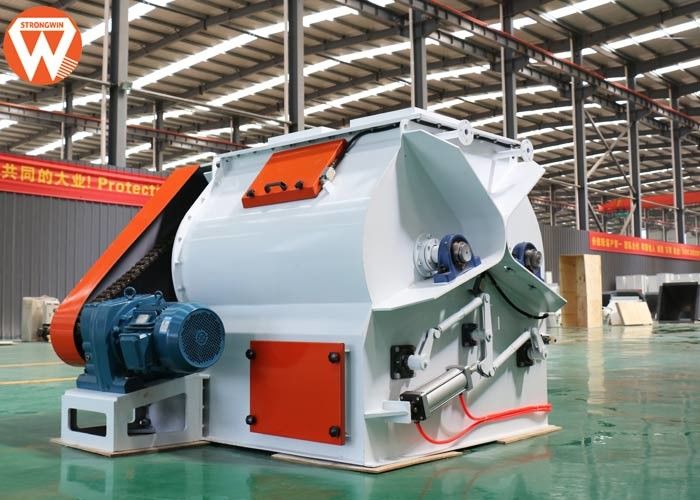

Double shaft paddle mixer
The improvement of open door shaft and link mechanism ensure that the angle of openning door is larger than 90-(the materials can’t fall on the door), close door which is deadlocked.

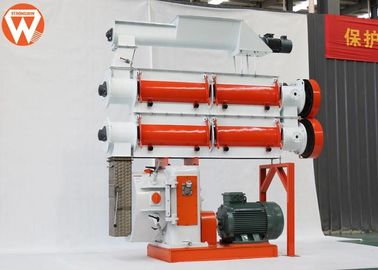

Ring die feed pellet machine
Equipped with force feeding device, can feed grass evenly.
The complete machine transmission parts include electric motor with Switzerland “SKF” high quality bearing, ensure high-efficiency, stable and low noise drive

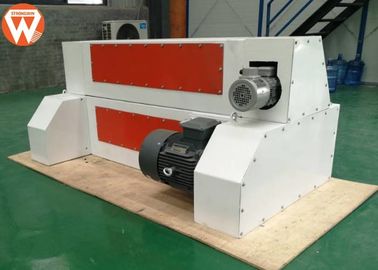

Crumbler machine,Counter-flow cooler machine,Screener machine etc.
Automatic Packing machine
Technical Parameters of Rabbit/Bunny Feed Pellet Production Plant
| Item | Name | Type | Qty | Power (KW) |
| Part 1. Raw material receiving& crushing system | ||||
| 1-103 | Impulse Filter | TBGM20 | 1 | |
| 1-105 | Bucket Elevator | TDTG36/23 | 1 | 4 |
| 1-106 | Cylinder Filtering Sieve | TCQY63 | 1 | 0.75 |
| 1-107 | Additive Blender | TCXT20 | 1 | |
| 1-110 | Impeller speed regulating Feeder | SWLY60 | 1 | 1.1 |
| 1-111 | Crusher | SFSP66*60 | 1 | 55 |
| 1-114 | Impulse Filter | TBLMa24 | 1 | |
| 1-116 | Wind-shielding Screw conveyor | TLSB20 | 1 | 2.2 |
| Part 2. Mixing System | ||||
| 2-202 | Bucket Elevator | TDTG36/23 | 1 | 4 |
| 2-203 | Powder Screener | SCQZ60 | 1 | 5.5 |
| 2-207 | Feeder for additive | 1 | ||
| 2-208 | Mixer | SLHS1.0 | 1 | 11 |
| 2-210 | Scraper Conveyor | TGSU20 | 1 | 3 |
| Part 3. pelleting system | ||||
| 3-308 | Pellet Mill | SZLH350 | 1 | 57.95 |
| 3-310 | Cooler | SKLN3 | 1 | 1.5 |
| 3-311 | Crumbler | SSLG15*150 | 1 | 11 |
| Part 4. Packing system | ||||
| 4-401 | Bucket elevator | TDTG36/18 | 1 | 3 |
| 4-402 | Rotary Screener | SFJH80*2d | 1 | 2.2 |
| 4-409 | Auto Packing Scale | 10-50KG | 1 | 1.5 |
| 4-410 | Stitch conveyor | 1 | 1.5 | |
| Part 5. Auxiliary Equipment System | ||||
| 5-506 | Steam Supplying System | 1 | ||
| 5-507 | Oil adding System | 1 | 2.2 | |
| 5-508 | Oil Adding Tube | 1 | ||
| 5-509 | Calabash Crane | 1 | 3 | |
