1T/H Cattle Feed Manufacturing Machine With Vertical Pulverizer Compact Structure

1T/H Cattle Feed Manufacturing Machine With Vertical Pulverizer Compact Structure
1T/H Cattle Feed Manufacturing Machine With Vertical Pulverizer Compact Structure

Large Image :  1T/H Cattle Feed Manufacturing Machine With Vertical Pulverizer Compact Structure

Product Details:
Place of Origin: China
Brand Name: Strongwin
Certification: CE,ISO,SGS
Model Number: 1t/h
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Wooden Case or In Container
Delivery Time: 10-30 working days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per year
Detailed Product Description
Type: 1T/H Pakistan Chicken Poultry Pellet Feed Plant Manufacturing Capacity: 1T/H
Pellet Size: 1-10mm Power: 65kw
Main Machine: Crusher,mixer,pellet,crumbler,cooler,screener Machine Make Feed For: Poultry Chicken Feed
High Light:

chicken feed production equipment

,

poultry feed mill equipment

1T/H Pakistan Chicken Poultry Pellet Feed Plant Manufacturing



Craft of Chicken Poultry Pellet Feed Plant



Materials crusher--Mixer--Pelletizer--crumbler(according customer need)--Feed cooler--Screener machine--Packing machine



Equipped with Feed crumbler machine, can application to small chicken



Introduction of Chicken Poultry Pellet Feed Plant



Vertical pulverizer, always combined with single shaft ribbon mixer machine

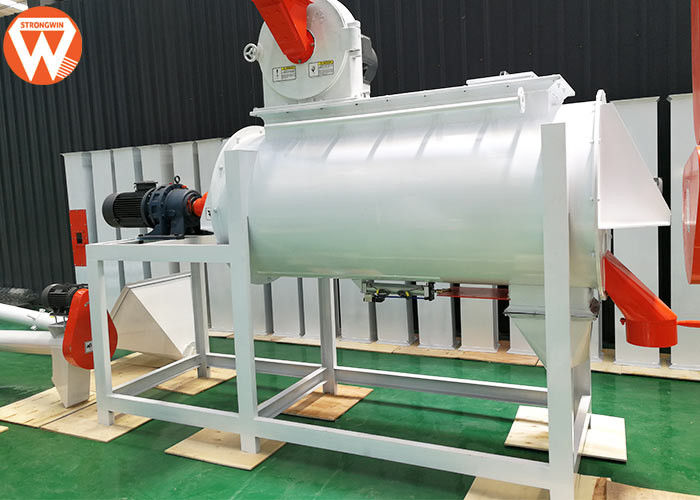

About Ribbon mixer machine: Body is round, there is no dead angle and no block inside

One end for feeding, the other for discharging, Simple corollary equipment, small investment.

High mixing evenness degree, CV≤7%,mixing time:2-4 minutes

Widely used in feed plants, livestock breeding industries,etc.

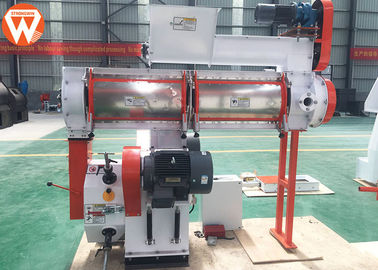

Ring die feed pellet machine: Adopt international advanced ring die processed by heat treatment vacuum furnace, lengthen useful life and pellet is smooth with high quality.
International advanced level compensated serpentine spring coupling, novel and compact structure, safe, low noise and low machinery failure
Adopt international advanced piping system and import pressure regulating valve.
Permanent magnet device with high performance. Customize pellet mill with doubel layers or three layers.


Crumbler machine: Two-roller structure and low cost.

It is installed with reverse turning structure which can control the size of feeding mouth and make feeding well-distributed.

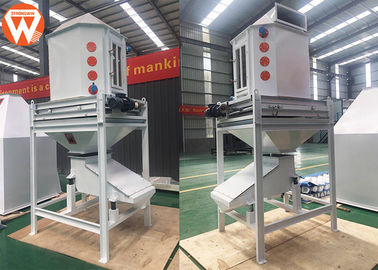

Cooler machine: Cooling separator is cooling and sieving equipment combination equipment, air-cooled cooler has the advantages of convenient installation, low operation cost, place for the lack of water resources, it can be used in high temperature, high humidity, dust environment, the characteristics of air cooled chiller, has the advantages of simple structure, small volume, light weight, low thermal resistance, heat transfer area etc.



Technical Parameters of Chicken Poultry Pellet Feed Plant



No. Product Type Power(KW)
1.Raw materials receiving and crushing and mixing system
101 Screw Conveyor TSLL16 2.2
102 Hammer Crusher SFPZ56*20 15
103 Ribbon Mixer SHW1.0 7.5
2.Pelleting system
201 Bucket Elevator TDTG36/18 2.2
204 Pellet Machine(include control box) SZLH250 11*2+2.2+0.75
3.Cooling system
303 Airlock GFY250 0.75
304 Counter Flow Cooler SKLN11×11 0.75
305 Air Blower 4-72-4A 5.5
308 Pellet crusher SSLG15*80 5.5
309 Manual Three-way SD20*20
4.Auxiliary System
402 Rotary Screener SFJH80*2d 1.5
5.Auxiliary System
501 Boiler



1T/H Cattle Feed Manufacturing Machine With Vertical Pulverizer Compact Structure 0
