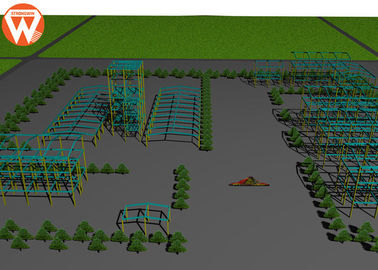

Supply Livestock Feed Factory Steel Structure Workshop Drawing
Description of Steel Structure Workshop
Our prefabricated steel structure workshop are pre-cut, pre-drilled, and ready for quick and efficient assembly. Steel buildings work for virtually any building application:Agricultural/ Barns/ Aircraft Hangars/ Welding Shops/ Commercial center/ Garages/ Storage/ Suburban Buildings/ Warehouses/ Workshops etc.
Steel structure building ware-house/workshop is a new type of light steel structure building system formed from a main steel framework comprised of H section, Z section and U section steel components, the roof and walls utilizing a variety of panels and other components such as windows, doors, and cranes.
Service of Livestock Feed Factory Steel Structure Workshop
1. Designed to meet required loads and codes for your area.
2. Factory direct advantage, Price is direct from the factory
3. Engineers Installation
Technical parameters of Steel Structure Workshop
| Main Steel Frame | H section steel | Q235/Q355 steel |
| Welding | Automatic submerged arc welding | |
| Rust removal | Sand blasting | |
| Surface finish | Alkyd paint or galvanized | |
| Intensive bolt | M20,Grade 10.9 | |
| Supporting System | Angle brace | L50x4,Steel Q235, processed and painted |
| Horizontal brace | Φ25, Steel Q235, processed and painted | |
| Column brance | Φ25, Steel Q235, processed and painted | |
| Tie rod | Φ114*4, Steel Q235, processed and painted | |
| Ordinary bolt | M12 Galvanized bolt | |
| Roof | Purlin | C180*75*20*2.5,Steel Q235, galvanized and painted |
| Roof panel | Sandwich panel or corrugated steel sheet | |
| Sky light | 6mm thick PVC | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | 0.5mm steel sheet profile trimming | |
| Gutter | 0.5mm thick sheet steel profile or galvanized sheet | |
| Down pie | Φ150PVC | |
| Walls | Purlin | C160*60*2.5,Steel Q235, painted |
| Wall | Sandwich panel or corrugated steel plate | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | 0.4mm steel sheet profile trimming | |
| Ventilation | Ventilation ball | |
| Doors & windows | Rolling door/sliding door PVC/alu/steel/window |
