Painted Animal Feed Equipment / Prefab Q255 Light Steel Structure Workshop

Painted Animal Feed Equipment / Prefab Q255 Light Steel Structure Workshop
Painted Animal Feed Equipment / Prefab Q255 Light Steel Structure Workshop

Large Image :  Painted Animal Feed Equipment / Prefab Q255 Light Steel Structure Workshop

Product Details:
Place of Origin: China
Brand Name: Strongwin
Certification: CE,ISO,SGS
Model Number: Steel Structure
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: 40 feet container
Delivery Time: 15 working days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50tons per day
Detailed Product Description
Commonity: Animal Feed Equipment Prefab Q255 Light Steel Structure Workshop Standard: AISI, ASTM, BS, DIN, GB, JIS
Pillar & Beams: H Type Steel Purlin: C Type Steel
Surface Treatment: Painted & Hot Dip Galvanized Window: Aluminiumn Alloy, PVC, Sandwich Panel Etc
High Light:

rotary screener

,

rotary screening machine

Animal Feed Equipment Prefab Q255 Light Steel Structure Workshop

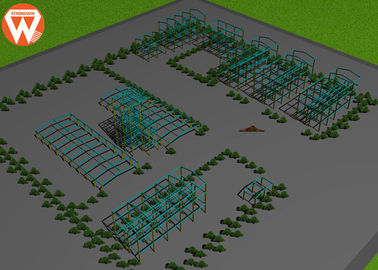

Steel structure workshop is a new type of light steel structure building system formed from a main steel framework comprised of H section, Z section and U section steel components, the roof and walls utilizing a variety of panels and other components such as windows, doors, and cranes.



Advantages of light Steel Structure Workshop



1. High strength
With a depth of 25mm stamping technology (domestic currently 17mm), which makes the products have good resistance to accidental load characteristics and voltage characteristics. At lower temperatures and annual snowfall in the area, even if it often has snow on the roof, it does not produce tile surface damage and fracture phenomena.
2. Shock seismic wind
have strong wind and earthquake resistance capacity.
4. Durability
Several times with anti-rust and anti-corrosion coating, it was also able to maintain their color stability, 30 years without fading .
5. Waterproof and Fireproof
Substrate itself is non-combustible materials with excellent fire performance.

6.sound insulation warm and heat insulation

Sheet on the back of additional has special XPE, which makes the products have better sound insulation, heat preservation, heat insulation effect, and effectively to prevent condensation.



Technical parameters of Steel Structure Workshop



Main Steel Frame H section steel Q235/Q355 steel
Welding Automatic submerged arc welding
Rust removal Sand blasting
Surface finish Alkyd paint or galvanized
Intensive bolt M20,Grade 10.9
Supporting System Angle brace L50x4,Steel Q235, processed and painted
Horizontal brace Φ25, Steel Q235, processed and painted
Column brance Φ25, Steel Q235, processed and painted
Tie rod Φ114*4, Steel Q235, processed and painted
Ordinary bolt M12 Galvanized bolt
Roof Purlin C180*75*20*2.5,Steel Q235, galvanized and painted
Roof panel Sandwich panel or corrugated steel sheet
Sky light 6mm thick PVC
Accessories Glass cement, self-tapping screws, etc.
Edge cover 0.5mm steel sheet profile trimming
Gutter 0.5mm thick sheet steel profile or galvanized sheet
Down pie Φ150PVC
Walls Purlin C160*60*2.5,Steel Q235, painted
Wall Sandwich panel or corrugated steel plate
Accessories Glass cement, self-tapping screws, etc.
Edge cover 0.4mm steel sheet profile trimming
Ventilation Ventilation ball
Doors & windows Rolling door/sliding door PVC/alu/steel/window



Painted Animal Feed Equipment / Prefab Q255 Light Steel Structure Workshop 0
