Dry Type Fish Feed Extruder Fish Feed Production Line

Dry Type Fish Feed Extruder Fish Feed Production Line
Dry Type Fish Feed Extruder Fish Feed Production Line

Large Image :  Dry Type Fish Feed Extruder Fish Feed Production Line

Product Details:
Place of Origin: China
Brand Name: Strongwin
Certification: CE,ISO,SGS
Model Number: DGP60C feed line
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T
Supply Ability: 1000sets per year
Detailed Product Description
Equipment Name: Dry Type Fish Feed Extruder Machine Fish Feed Production Line Application: Fish Shrimp Feed, Pet Food Extruder
Capacity: 100-150kg/h Main Machine: Crusher, Mixer,extruder,dryer,spary, Cooler,packing Machine
Condition: New Service: From Design To Installation
High Light:

Extruder Fish Feed Production Line

,

Dry Type Fish Feed Extruder

DGP60C 100-150 KG/H Dry Type Fish feed extruder machine fish feed production line



Main Procedures of Fish Feed Pellet production Line



Material crushing→material mixing→extruding process→pellets drying→oil spraying process→pellets cooling→pellet packing

Dry Type Fish Feed Extruder Fish Feed Production Line 0

1. Crushing
Raw materials first are crushed by the fish feed crusher. The particle size directly effects the efficiency of pellet making. Once feeding into the crushing chamber, materials are smashed under the high-speed rotation of hammers. With the high pressure and rapid-moving of airflow, the smashed raw materials are further reduced into particle size or very small pieces for further processing.



2. Mixing
We provide feed mixer with a single-shaft and twin-ribbon. It reinforces convection, shearing, and mixing effects and is an essential parts of the whole line.



3. Extruding
After mixing, feed pellet extruder will compress feed powder into sized pellets. Dry type fish feed extruder is the significant equipment with reliable performance, easy operation and reasonable price, which is economic for small and medium scale production. Therefore dry type feed pellet making machine are recommend in the feed pellet plant.
Wet type feed extruder:with the conditioner can also produce high quality pellets in large capacity, which suits for large fish feed factory

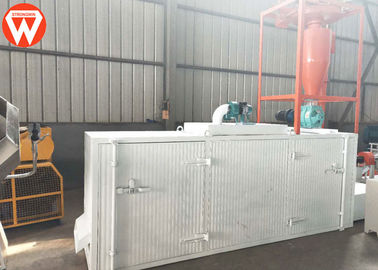

4. Drying
Fish feed pellets from pellet making machine need to lower high moisture and temperature. So mesh belt dryer should be equipped in the production line. With simple structure, it is easy to install and maintain, and ideal for fish feed pellets drying.



5. Oil Spraying Process
For acquiring better smell and taste, the oil spraying machine can be used to spraying oil to the surface of fish feed pellets coming out of the dryer. It sprays atomized oil with high speed on the up and down surface of pellets, and the excessive oil can be recycled through filter.



6. Pellet Cooling
Hot pellets are soft and easily broken, which can result in a high percentage of fines. By cooling pellets can be harden. Counter flow cooler is cooling type that commonly used in pellet industry currently with the direction of the air and product of pellets in opposing directions.



7. Pellet packaging
The fish feed pellets are packaged in bags for further transporting and storage. Here you can opt pellet packing machine which is suitable for weighing and bagging pellets. Using packaging machine can increase productivity, reduce labor intensity and satisfy the needs of large-scale production and meet hygiene requirements.
Dry Type Fish Feed Extruder Fish Feed Production Line 1

Dry Type Fish Feed Extruder Fish Feed Production Line 2

Technical Parameters of Fish feed extruder machine fish feed production line

No. Name Capacity(kg/h) Qty (set) Power(KW)
1 Hammer mill 200 1 5.5
2 Dusting collection and storage bin Capacity of storage bin 0.5-1.0m³ 1 0.75*2
3 Mixer 25kg/batch, need 10-15 minutes per batch 1 4
4 Extruder (send you another one more set spare parts) 120-150 1 Main Power: 15
Cutting Power: 0.4
Feeding Power: 0.4
5 Pneumatic conveying equipment 200 1 Fan power: 2.2kw
Discharge Power: 0.75kw
6 Mesh belt dryer 150-200 1 Heating power: 15-18kw
Mesh belt power: 1.5kw
Fan power: 0.37kw
7 Spray machine 25kg/batch, need 5 minutes per batch 1 Main power: 0.75kw
Oil pump power: 0.37kw
8 Control system   1
9 Electronic scales
10 Sewing machine

Dry Type Fish Feed Extruder Fish Feed Production Line 3

Dry Type Fish Feed Extruder Fish Feed Production Line 4

DGP80B Fish feed extruder plant(Capacity 200-250kg/h)

Dry Type Fish Feed Extruder Fish Feed Production Line 5

Oversea Projects

Dry Type Fish Feed Extruder Fish Feed Production Line 6

Pellets application

Dry Type Fish Feed Extruder Fish Feed Production Line 7

Dry Type Fish Feed Extruder Fish Feed Production Line 8



Our factory supply dry and wet type fish feed extruder plant
Provide users with economical and rational design
Professional installation and training service



Welcome contact us !
