Chicken Pallet Horizontal Mixer Machine 10T/H Animal Feed Mill Equipment

Chicken Pallet Horizontal Mixer Machine 10T/H Animal Feed Mill Equipment
Chicken Pallet Horizontal Mixer Machine 10T/H Animal Feed Mill Equipment

Large Image :  Chicken Pallet Horizontal Mixer Machine 10T/H Animal Feed Mill Equipment

Product Details:
Place of Origin: China
Brand Name: Strongwin
Certification: CE,ISO,SGS
Model Number: SZLH420 feed equipment
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Wooden Case or In Container
Delivery Time: 16-30 working days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per year
Detailed Product Description
Name: Horizontal Mixer Machine Chicken Animal Feed Mill Equipment Capacity: 8-10T/H
Total Power: 550kw Pellet Size: 0.9-12mm
Main Machine: Crusher,mixer,pellet,crumbler,cooler,screener Machine Application: Poultry Animal Feed
High Light:

10 T/H Horizontal Mixer Machine

,

10T/H Animal Feed Mill Equipment

,

12mm Pellet Animal Feed Mill Equipment

10 T/H Horizontal Mixer Machine Chicken Animal Feed Mill Equipment



Process of animal feed mill equipment



Feed grinder--feed mixer--feed pellet--pellet cooler--screener machine--packing machine



Main machine Introduction of animal feed mill equipment



hammer mill crusher machine

Stable performance, widely used in large and medium-sized feed, feed processing enterprises

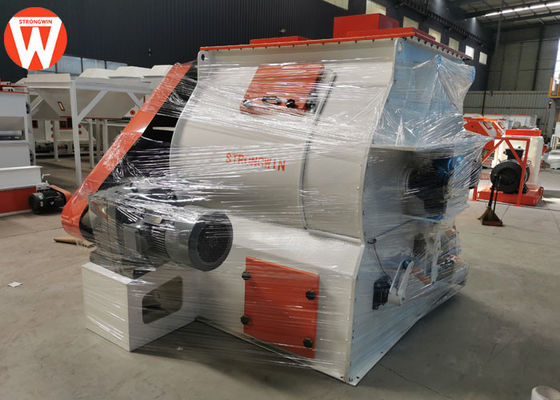

Double shaft paddle mixer

Fast mixing speed, short mixing period, 30-120 seconds / batch; high mixing uniformity, CV ≤ 5%, and no segregation; the mixing process of the machine is mild, the loading range is variable; the full-bottom electric opening and unloading Material, fast discharge, low material residual rate



Ring die feed pellet machine

Imported high-quality bearings and oil seals are used to ensure efficient, stable and low noise operation. The feeder adopts a variable frequency speed regulating motor to ensure the quality of the pellet discharge.



Crumbler machine

Three-roller structure, balanced and continuous work, advantages of equal sizes of finished products, high broken efficiency.

Less grading returned materials, high rate of finished products, Installed with feeder, low consumption.



Counter-flow cooler machine

On the Principle of the advanced counter flow cooling, SKLN series counter flow cooler is equipped with a reciprocating grate type discharging device, which is characterized by its smooth material flowing and uniform discharging.



Screener machine

Low breakdown, less maintenance, simple operation, the gearbox adopts non-gear transmission way, dispense with oil lubrication, avoid oil pollution with oil leakage

Chicken Pallet Horizontal Mixer Machine 10T/H Animal Feed Mill Equipment 0



Technical Parameters of animal feed mill equipment



10 T/H Automatic Feed Pellet mill equipment
No. Product name Model Power(kw)
1. material receiving section
102 pulse dust collector TBLFa.18
105 granule material clean sieve SCY80 0.75
106 permanent magnetic TXCT25
108 powder cleaner SCQZ80 11
109 permanent magnetic TXCT25
2. material grinding section
206 Impeller feeder SYLW3 1.5
207 series tear-circle hammer mill SDH-ZW50C 132
210 seal screw conveyor SWLL25 6
3. batching and mixing section
313 double shaft high efficient mixer SSHJ.2 18.5
314 scrapper conveyor TGSU25 3
315 Bucket elevator TDTG48.28 5.5
316 powder material clean sieve SCQZ75×65×1 40 7.5
317 permanent magnetic drum TXCT30
4. pelleting section
408 Pellet machine SZLH420 110
410 counter-current cooler SKLN6 1.5
410-1 crusher SSLG20×170 15
415 classic sieve SFJH125 3
5. packing section
501 Finished product bin
506 automatic packing scale SDBY-P
507 seal conveyor machine TFKB40 3
509 pulse dust collector TBLFa.24
510 seal machinery   0.75
6.auxiliary system
601 Air compressor   22
603 liquid adding machine SYTV32 3
604 liquid adding pipeline
606 boiler system



Chicken Pallet Horizontal Mixer Machine 10T/H Animal Feed Mill Equipment 1
