Product Details:
Payment & Shipping Terms:
|
Type: | Mesh - Belt Type Fish Feed Dryer Floating Fish Food Processing Line | Yield: | 0.2-0.3t/h |
---|---|---|---|
Total Power: | 65KW | Pellet Diameter: | 0.9-15mm |
Application: | Fish Farm Or Fish Feed Factory | Main Machine: | Crusher,mixer,extruder,dryer,spary,cooler Machine |
High Light: | fish food production line,fish food processing line |
Mesh - Belt Type Fish Feed Dryer Floating Fish Food Processing Line
Advantage of Fish Food Processing Line
◇ The technological parameter, such as raw materials, temperature, and moisture, of this fish food production line is adjustable. Floating fish feed produced by this plant have beautiful appearance, unique taste and rice-nutrient, suitable for different fish and pets.
◇ The fish feed pellet line is widely used in production of animal feed, such as dogs, cats, fish, foxes, birds and other pets.
◇ floating fish feed plant adopts double-screw extruding technique. The fish feed pellet manufacturing process, from raw materials crushing to finished products packaging, an be finished at one time.
◇ All the fish feed machines in this plant are with stable operation and advanced technology. It can satisfy the production demands of different customers on current market.
Main Procedures of Fish Food Processing Line

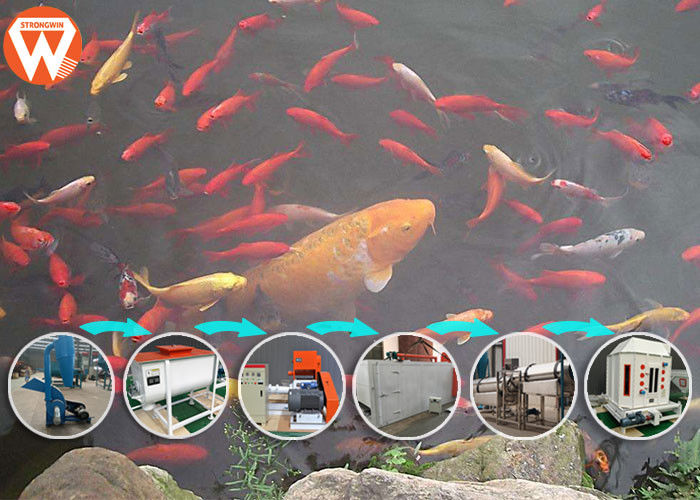

Material crushing→material mixing→extruding process→pellets drying→oil spraying process→pellets cooling→pellet packing
Mesh-belt Type fish feed dryer: The dryer machine often applies in drying maters, when material via belt conveyor transported into dry tunnels, hot air will soon touch them and dry them. It generally consists of many interdependent units, each of that includes cycling fans, heating equipment, independent or public air in system and tail gas out system. To optimally dry materials, operating parameters of temperature and moisture of dry medium and the cycling account can be controlled dependently. In general, the dryer machine is made up of one cycling belt conveyor, two or more air heating equipment, a few of fans and variable speed drive. The belt conveyor is made up of stainless steel screen or porous stainless steel, driving by motor and adjustment in revolving speed.
Technical Parameters of Fish Food Processing Line
Name | Capacity | Power | Dimension | |
1 | Crusher | 300-400kg/h | 11kw | 1350*930*1250mm |
2 | Dusting collection, bag dust collector and storage bin | Capacity of storage bin 0.5-1.0m³ | 0.75kw*2 | 1200*1000*3200mm |
3 | Screw elevator | 300-400kg/h | 1.5kw | 3000*820*630mm |
4 | Horizontal mixer | 100kg/batch,every batch is 10min. | 3kw | 1530*820*1420mm |
5 | Screw elevator | 300-400kg/h | 1.5kw | 3000*820*630mm |

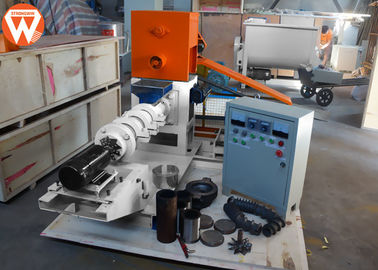

6 | Extruder DGP80-B |
200-300kg/h | Main Power: 22kw Cutting Power: 0.6kw Feeding Power: 0.8kw |
1800*1550*1300mm |
7 | Air conveyor | 200-400kg/h | Fan power: 2.2kw Discharge power: 0.75kw |
750*650*1850mm |
8 | Mesh belt dryer | 200-300kg/h | Heating power: 24kw Mesh Belt Power: 2.2kw Fan Power: 0.55kw |
3200*1200*1850mm |
9 | Air conveyor | 200-400kg/h | Fan power: 2.2kw Discharge power: 0.75kw |
750*650*1850mm |

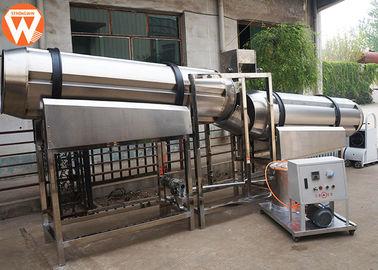

10 | Spraying Machine | 300-500kg/h | Main Power: 0.75kw Oil Pump Power: 0.37kw |
5000*750*1550mm |
11 | Air conveyor | 200-400kg/h | Fan power: 2.2kw Discharge power: 0.75kw |
750*650*1850mm |
12 | Counter current cooler | 100-150kg/batch,10- 15min | 3kw | 1150*900*2000mm |
13 | Air conveyor | 200-400kg/h | Fan power: 2.2kw Discharge power: 0.75kw |
750*650*1850mm |
14 | Packing scale | ≤300 bag/h. 1-25kg/bag |
0.75kw | 2650*800*2740mm |
15 | Power control system |
