Product Details:
Payment & Shipping Terms:
|
| Heating Power:: | Heating Power: 30kw (can Also Be Heated By Steam, The Required Steam Volume Is 0.2-0.3t/h) | Exhaust Wind Power: | 0.75kw |
|---|---|---|---|
| Mesh Belt Power: | 4.0kw | Circulating Fan Power: | 0.37kw |
| Yield: | 500-600kg/h | Dimension: | 5000*1650*2150mm |
| Weight: | 1200kg | Application: | To Dry Floating Fish Feed,sinking Fish Feed,pet Food |
| Highlight: | feed pellet dryer,fish feed drying machine |
||
500-600 Kg/H Long Drying Time Stainless Steel Plate Pet Fish Feed Dryer Machine
Fish feed dryer Introduction
Final pellets from fish feed extruder are moist in high temperature, so they can not be transported and stored immediately and require to be dried first. Mesh belt pellet dryer is specially designed machine to remove pellet moisture and heat generated in pellet production. Pellet drying process is: placing the material on the conveyor belt with the accompanying motion by contact with hot air in the tunnel to drying. Uniform pellet drying, flexible configuration and unique air dividing device, mesh belt dryers are offered with three models for your drying demands!
Working Principle of Mesh Belt Fish Feed Dryer
Material on the conveyor belt goes through the channel and heated by the hot air, thus the moisture can be reduced. This feed dryer consists of several independent units. Every unit is made up of circulation fan, heating device, fresh air suction & exhaust discharging system. The hot air temperature and circulation volume can be intelligently controlled.

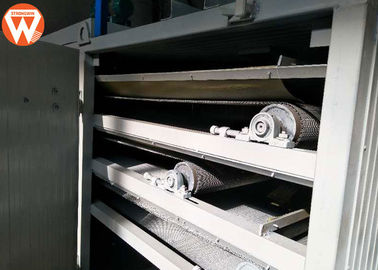

Multilayer mesh belt structure: one circulation conveying belt, more than two heating machines, several fans, transmission device. The conveying belt is made of stainless steel wire mesh or multi-hole stainless steel plate.
Advantages of Mesh Belt Fish Feed Dryer
1. The equipment’s configuration is very flexible. Simple structure, easy installation and maintenance.
2. Materials will not be vibrated or impacted during the drying process, so the pellets will keep intact.
3. Air quantity, heating temperature, materials staying time and feeding speed can be adjusted to achieve the best drying effect.
4. Hot air can be circularly applied, the energy is greatly saved.
5. Unique air dividing device, it makes hot air distribute uniformly; this can guarantee products’ quality.
6. Mostly used in requirement of low drying speed and long drying time.
7. Ideal for drying feed pellets, grains and etc.
8. It is commonly used in the low drying speed and long drying time of occasion.
Technical Parameter
| Model | Heating Powder | Mesh belt power | Exhaust wind power | Circulating fan power | Capacity | Dimension | Weight |
| SW-150 |
Heating power: 15-18kw (can also be heated by steam, the required steam volume is 0.1t/h) |
1.5kw | 0.37kw | 0.15kw | 150-200 | 3200*1100*1550mm | 580kg |
| SW-300 | Heating power: 24kw (can also be heated by steam, the required steam volume is 0.1t/h) |
2.2kw | 0.55kw | 0.15kw | 200-300 | 3200*1200*1850mm | 750kg |
| SW-500 | Heating power: 26-28kw (can also be heated by steam, the required steam volume is 0.1-0.2t/h) |
4.0kw | 0.75kw | 0.37kw | 500-600 | 5000*1650*2150mm | 1200kg |
| SW-1000 | Heating power: 30kw (can also be heated by steam, the required steam volume is 0.2-0.3t/h) |
5.5kw | 1.1kw | 0.55kw | 1000-2000 | 4100*1600*2200mm | 2400kg |
| SW-2000 | Heating power: 45kw (can also be heated by steam, the required steam volume is 0.5t/h) |
5.5kw | 1.5kw | 0.55kw | 2000-2500kg/h | 6500*2100*2400mm | 3200kg |
