Product Details:
Payment & Shipping Terms:
|
| Name: | 1-2.5 T/H Animal Poultry Feed Pellet Mill Plant Cost With Installation | Application: | Animal Poultry Feed |
|---|---|---|---|
| Pellet Size: | 0.9-15mm | Total Power: | 50kw |
| Main Machine: | Crusher,mixer,pellet,crumbler,cooler,screener Machine | Capacity: | 1-2.5T/H |
| Highlight: | chicken feed production equipment,poultry feed mill equipment |
||
1-2.5 T/H Animal Poultry Feed Pellet Mill Plant Cost With Installation
Introduction of Animal Poultry Feed Pellet Mill Plant
The full plant including: Raw materials of receiving,cleaning,grinding system, System of batching&mixing, System of pelleting & cooling, System of packing, System of Auxiliary(Air compressor, Steam supply system, Liquid adding machine)
Features of Animal Poultry Feed Pellet Mill Plant:
High capacity and low energy consumption
The plant is compact, occupies less floor space
Can produce both poultry & livestock feed
Easily Adjustable and super quality
All machines can be interlocked and safe
Poultry Feed Mill -20 Ton /Hour With Batching Scale
Main machine of Animal Poultry Feed Pellet Mill Plant
Vertical pulverizer, always combined with single shaft ribbon mixer machine, Easy to operate and Installation.
Ribbon mixer machine: Body is round, there is no dead angle and no block inside
One end for feeding, the other for discharging, Simple corollary equipment, small investment.
High mixing evenness degree, CV≤7%,mixing time:2-4 minutes
Widely used in feed plants, livestock breeding industries,etc.

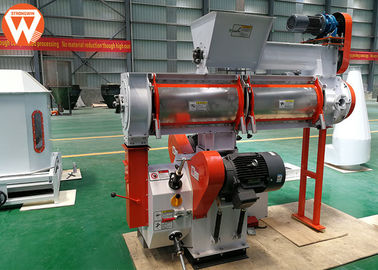

Ring die feed pellet machine: Adopt international advanced ring die processed by heat treatment vacuum furnace, lengthen useful life and pellet is smooth with high quality.
International advanced level compensated serpentine spring coupling, novel and compact structure, safe, low noise and low machinery failure
Permanent magnet device with high performance. Customize pellet mill with doubel layers or three layers.
Crumbler machine: It overcomes the disadvantages of changing different specifications of gear after drawbench processing during drive and easy- slippery of belt drive.
It is installed with reverse turning structure which can control the size of feeding mouth and make feeding well-distributed.
Cooler machine: Cooling separator is cooling and sieving equipment combination equipment, air-cooled cooler has the advantages of convenient installation, low operation cost, place for the lack of water resources, it can be used in high temperature, high humidity, dust environment, the characteristics of air cooled chiller, has the advantages of simple structure, small volume, light weight, low thermal resistance, heat transfer area etc.
Technical Parameters of Animal Poultry Feed Pellet Mill Plant
| No. | Product | Type | Power(KW) |
| 1.Raw materials receiving and crushing and mixing system | |||
| 101 | Screw Conveyor | TSLL16 | 2.2 |
| 102 | Hammer Crusher | SFPZ56*20 | 15 |
| 103 | Ribbon Mixer | SHW1.0 | 7.5 |
| 2.Pelleting system | |||
| 201 | Bucket Elevator | TDTG36/18 | 2.2 |
| 204 | Pellet Machine(include control box) | SZLH250 | 11*2+2.2+0.75 |
| 3.Cooling system | |||
| 303 | Airlock | GFY250 | 0.75 |
| 304 | Counter Flow Cooler | SKLN11×11 | 0.75 |
| 305 | Air Blower | 4-72-4A | 5.5 |
| 308 | Pellet crusher | SSLG15*80 | 5.5 |
| 309 | Manual Three-way | SD20*20 | |
| 4.Auxiliary System | |||
| 402 | Rotary Screener | SFJH80*2d | 1.5 |
| 5.Auxiliary System | |||
| 501 | Boiler | ||
