Product Details:
Payment & Shipping Terms:
|
| Name: | High Strength Design Prefabricated Steel Structure Warehouse Price | Grade: | Q235 Q355 |
|---|---|---|---|
| Type: | Light | Application: | Feed Plant |
| Pillar & Beams: | H Type Steel | Purlin: | C Type Steel |
| High Light: | rotary screener,rotary screening machine |
||
High Strength Design Prefabricated Steel Structure Warehouse Price

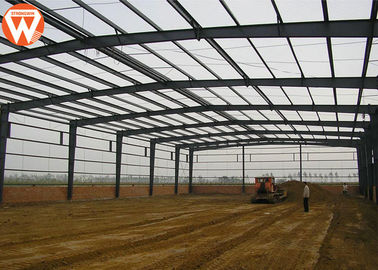

Introduction of prefabricated steel structure warehouse
Our prefabricated steel structure buildings are pre-cut, pre-drilled, and ready for quick and efficient assembly. Steel buildings work for virtually any building application:Agricultural/ Barns/ Aircraft Hangars/ Welding Shops/ Commercial center/ Garages/ Storage/ Suburban Buildings/ Warehouses/ Workshops etc.
Advantages of prefabricated steel structure warehouse
1. High strength
With a depth of 25mm stamping technology (domestic currently 17mm), which makes the products have good resistance to accidental load characteristics and voltage characteristics. At lower temperatures and annual snowfall in the area, even if it often has snow on the roof, it does not produce tile surface damage and fracture phenomena.
2. Shock seismic wind
have strong wind and earthquake resistance capacity.
4. Durability
Several times with anti-rust and anti-corrosion coating, it was also able to maintain their color stability, 30 years without fading .
5. Waterproof and Fireproof
Substrate itself is non-combustible materials with excellent fire performance.
Technical parameters of prefabricated steel structure warehouse
| Main Steel Frame | H section steel | Q235/Q355 steel |
| Welding | Automatic submerged arc welding | |
| Rust removal | Sand blasting | |
| Surface finish | Alkyd paint or galvanized | |
| Intensive bolt | M20,Grade 10.9 | |
| Supporting System | Angle brace | L50x4,Steel Q235, processed and painted |
| Horizontal brace | Φ25, Steel Q235, processed and painted | |
| Column brance | Φ25, Steel Q235, processed and painted | |
| Tie rod | Φ114*4, Steel Q235, processed and painted | |
| Ordinary bolt | M12 Galvanized bolt | |
| Roof | Purlin | C180*75*20*2.5,Steel Q235, galvanized and painted |
| Roof panel | Sandwich panel or corrugated steel sheet | |
| Sky light | 6mm thick PVC | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | 0.5mm steel sheet profile trimming | |
| Gutter | 0.5mm thick sheet steel profile or galvanized sheet | |
| Down pie | Φ150PVC | |
| Walls | Purlin | C160*60*2.5,Steel Q235, painted |
| Wall | Sandwich panel or corrugated steel plate | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | 0.4mm steel sheet profile trimming | |
| Ventilation | Ventilation ball | |
| Doors & windows | Rolling door/sliding door PVC/alu/steel/window |
