Product Details:
Payment & Shipping Terms:
|
Name: | Animal Farm Poultry Feed Mill Plant Cost In Ethiopia | Capacity: | 2T/H |
---|---|---|---|
Application: | Animal Poultry Feed | Pellet Size: | 1-15mm |
Total Power: | 50kw | Main Machine: | Crusher,mixer,pellet,crumbler,cooler,screener Machine |
Highlight: | 2T/H Poultry Feed Mill Plant,50kw Poultry Feed Mill Plant |
2T/H Poultry Feed Mill Manufacturing Process Plant Export To Cote d'Ivoire
Strongwin Supply Turnkey project poultry feed process plant for Customers !
Feed Manufacturing Process plant Including:
Vertical pulverizer, always combined with single shaft ribbon mixer machine, Easy to operate and Installation.
Ribbon mixer machine: Body is round, there is no dead angle and no block inside
One end for feeding, the other for discharging, Simple corollary equipment, small investment.
High mixing evenness degree, CV≤7%,mixing time:2-4 minutes
Widely used in feed plants, livestock breeding industries,etc.

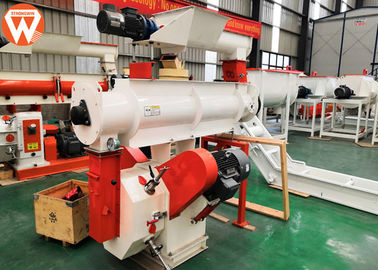

Ring die feed pellet machine: Adopt international advanced ring die processed by heat treatment vacuum furnace, lengthen useful life and pellet is smooth with high quality.
International advanced level compensated serpentine spring coupling, novel and compact structure, safe, low noise and low machinery failure
Permanent magnet device with high performance. Customize pellet mill with doubel layers or three layers.
Crumbler machine: It overcomes the disadvantages of changing different specifications of gear after drawbench processing during drive and easy- slippery of belt drive.
Cooler machine: Cooling separator is cooling and sieving equipment combination equipment, air-cooled cooler has the advantages of convenient installation, low operation cost, place for the lack of water resources, it can be used in high temperature, high humidity, dust environment, the characteristics of air cooled chiller, has the advantages of simple structure, small volume, light weight, low thermal resistance, heat transfer area etc.
Application of Feed Manufacturing Process plant
It can make kinds of animal feed pellet. Like chicken,bird,duck,rabbit,pig,cattle,cow,sheep,horse. etc.
Technical Parameters of Feed Manufacturing Process plant
No. | Product | Type | Power(KW) |
1.Raw materials receiving and crushing and mixing system | |||
101 | Screw Conveyor | TSLL16 | 2.2 |
102 | Hammer Crusher | SFPZ56*20 | 15 |
103 | Ribbon Mixer | SHW1.0 | 7.5 |
2.Pelleting system | |||
201 | Bucket Elevator | TDTG36/18 | 2.2 |
204 | Pellet Machine(include control box) | SZLH250 | 11*2+2.2+0.75 |
3.Cooling system | |||
303 | Airlock | GFY250 | 0.75 |
304 | Counter Flow Cooler | SKLN11×11 | 0.75 |
305 | Air Blower | 4-72-4A | 5.5 |
308 | Pellet crusher | SSLG15*80 | 5.5 |
309 | Manual Three-way | SD20*20 | |
4.Auxiliary System | |||
402 | Rotary Screener | SFJH80*2d | 1.5 |
5.Auxiliary System | |||
501 | Boiler |
