Product Details:
Payment & Shipping Terms:
|
Machine Name: | Chicken Production Line Poultry Feeding Equipment In Nigeria | Capacity: | 2-3T/H |
---|---|---|---|
Main Machine: | Crusher,mixer,pellet,cooler,screener,packing Machine | Make Feed For: | Chicken Poultry Animal Feed |
Power: | 80kw | Pellet Size: | 2-15mm |
Highlight: | 15mm Poultry Pellet Feed Plant,80kw Poultry Pellet Feed Plant |

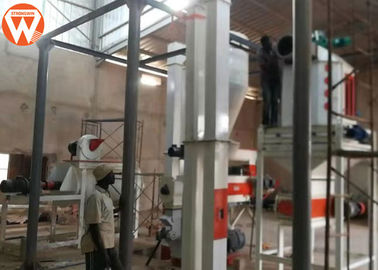

2-3T/H Chicken Production Line Poultry Feeding Equipment In Nigeria
Process of Chicken Production Line Poultry Feeding Equipment
Offer 1-30T/H Animal feed pellet equipment.
Strongwin factory can supply hand operate and full automatic feed line.
The full line including: Raw materials of receiving,cleaning,grinding system, System of batching&mixing, System of pelleting & cooling, System of packing, System of Auxiliary(Air compressor, Steam supply system, Liquid adding machine, Electricity Hoist)
The final pellet can apply to Poultry chicken feed, livestock cattle pig feed.(According Customers need, the plan will different)
Advantages of Chicken Production Line Poultry Feeding Equipment
Grinder machine : Multi-function hammer mill is suitable for many kinds of raw material, such as the straw, power-feed, grass. The principle is that the raw material will be beat by the high rotating hammer until to the powder. The powder send out through the screen.
Ribbon mixer machine: Body is round, there is no dead angle and no block inside
One end for feeding, the other for discharging, Simple corollary equipment, small investment.
High mixing evenness degree, CV≤7%,mixing time:2-4 minutes
Widely used in feed plants, livestock breeding industries,etc.
Ring die feed pellet machine: Adopt international advanced ring die processed by heat treatment vacuum furnace, lengthen useful life and pellet is smooth with high quality.
International advanced level compensated serpentine spring coupling, novel and compact structure, safe, low noise and low machinery failure
Permanent magnet device with high performance. Customize pellet mill with doubel layers or three layers.
Cooler machine: Cooling separator is cooling and sieving equipment combination equipment, air-cooled cooler has the advantages of convenient installation, low operation cost, place for the lack of water resources, it can be used in high temperature, high humidity, dust environment, the characteristics of air cooled chiller, has the advantages of simple structure, small volume, light weight, low thermal resistance, heat transfer area etc.
Technical Parameters of Chicken Production Line Poultry Feeding Equipment
Multilayer dryer | Name | Type | Power (KW) |
Part 1.Raw material receiving& crushing system&mixing system | |||
1-03 | Crusher | SFSP20 | 15 |
1-04 | Mixer | SHW1.0 | 7.5 |
Part 2.pelleting system | |||
2-03 | Feed pellet machine(matched with site control cabinet) | SZLH320 | 37 |
Part 3 . cooling system | |||
3-04 | Counter-flow cooler | SKLN11×11 | 0.8 |
3-08 | Vibrating screener | SFJZ60*1d | 0.4 |
Part 4. packing system | |||
4-05 | Packing scale | DCS50 | 2.2 |
4-07 | Boiler | 0.3t/h |
