Product Details:
Payment & Shipping Terms:
|
Machine Name: | Poultry Feed Pellet Machine Feed Pellet Manufacture Plant | Including Machine: | Feed Crusher,mixer,pellet,cooler,screener,packing Machine |
---|---|---|---|
Pellet Machine Capacity: | 1.5-2.5T/H | Type: | Ring Die |
Application: | Feed Factory Or Farming | Service: | 24 Hours Online |
High Light: | 2.5T/H Animal Feed Pellet Machine,Poultry Animal Food Pellet Machine |

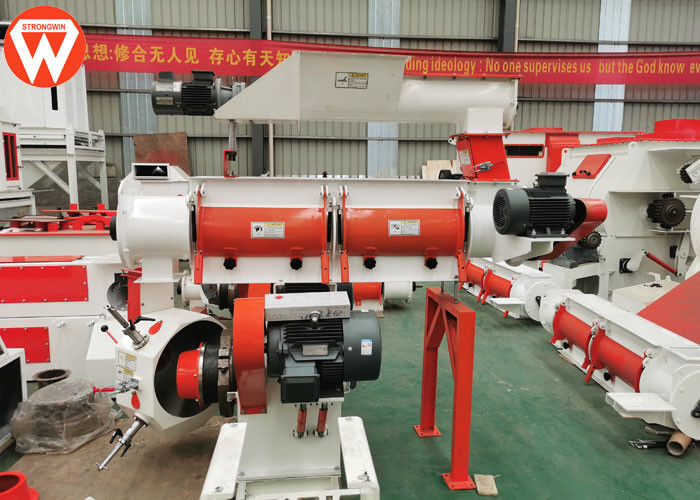

SZLH250 Poultry Feed Pellet Machine Feed Pellet Manufacture Plant
Feed Pellet Plant craft
Raw Material → Feed Crushing → Feed Mixing → Feed Pelletizing → Pellet Cooling → Pellet Crushing → Screening & Grading → Pellet Packing
Also accroding Customers' need, have Crumbler machine, for small animals.
Feed pellet machine is an important machine in feed pellet plant.
This type is SZLH250,capacity is 1.5-2.5t/h ring die feed pellet machine. Can be single used or apply to feed pellet plant.
Make pellets for chicken, bird, duck, rabbit, pig, cattle, cow, sheep, horse etc. Popular among Customers.
Have these advantages
1. High efficiency
Stable and classical gear driving, non-slipping, can really ensure the production output. Low noise, optimized ring die, maximum output.
2. Hygiene and safety
CE certified standard design and available stainless conditioner for feed, human and machine safety.
3. Flexible production
Wide product rangeΦ1.5mm-Φ12mm pellets, conditioner with molasses and steam adding function.
4. User-friendly operation
Hydraulic system for ring die change and roller adjustment(optional), quick ad precise operation; auto-lubrication system(optional)and die & roller lifting device, save labor; on-site touch screen control.
Model | SZLH250 | SZLH320 | SZLH350 | SZLH 400 | SZLH 420 | SZLH508 |
Main Motor Power (kw) | 22 | 37 | 55 | 90 | 110 | 132 |
Conditioner Power (kw) | 2.2 | 3 | 3 | 5.5 | 5.5 | 7.5 |
Dia of mould (mm) | 250 | 320 | 350 | 400 | 420 | 508 |
Feeder Power (kw) | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
Size of Finished pellets (mm) | 1.5-12 | 1.5-12 | 1.5-12 | 1.5-18 | 1.5-18 | 1.5-18 |
Yeild (t/h) for animal feed | 1.5-2.5 | 2-4 | 2-6 | 3-8 | 4-12 | 4-18 |
Our factory
Certificates
Feed pellet Projects at home and abroad
Provide users with economical and rational design
Professional installation and training service
Welcome contact us !
