|Product Name:||Chicken Poultry Animal Feed Pellet Making Machine Pellet Mill Plant||Yield:||20T/H|
|Machine Motor:||Siemens||Machine Bearing:||SKF|
|Service:||From Design To Installation||Shipping:||By Sea Or Train|
20TPH Animal Feed Making Machine,
20T/H Animal Feed Making Machine,
20T/H animal feed pellet mill
20TPH Chicken Poultry Animal Feed Pellet Making Machine Pellet Mill Plant
Description of Animal Feed Pellet Making Machine Pellet Mill Plant
According Customers' need, Our factory can Make Plan for Customers(From Design to Installation)
The full plant including: Raw materials of receiving,cleaning,crushing system, System of batching,mixing, System of pelleting,cooling,screenering, System of packing, System of Auxiliary(Air compressor, Steam supply system, Liquid adding machine, Electricity Hoist)

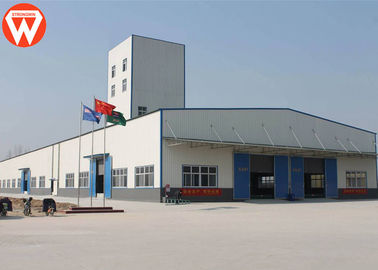

Size of workshop : 14*12*30M
Size of raw material warehouse : 4000 ㎡
Size of finished product warehouse : 2000 ㎡
Main machine display of Animal Feed Pellet Making Machine Pellet Mill Plant
Tear-circle hammer mill crusher machine
Adopting international advanced technique, crush room is designed as water drop. With special twice crush design, crush efficiency is greatly improved. With full open operating door, elasticity sieve pressing mechanism, easy to maintain and replace sieve.
Impeller feeder, feed evenly, prevent blocking. Cylinder automatic dust removal. Tungsten carbide hammer. China famous meishan sieve. Hammer sieve distance 0.8-1mm. Serpentine Spring Coupling, Protecting Motor
Double shaft Paddle mixer machine
Mixed in gravity-free state, no segregation, variety of liquids can be added. Two open doors structure, discharge rapidly, no leakage, less residue.Double Shaft Paddle Mixer Short mixing time(40-120sec/batch), high evenness degree(CV≤5%)may be up to 2%. Conveyed by three chains, run in low speed, stable operation movement.
Hardened gear reducer. SKF bearing and Bearing seat.Two injection oil systems. Paddle: Laser cutting machine processing, 3mm distance with mixed wall. Bottom cylinder type discharge.
Ring die feed pellet machine
US CPM models, use of high-strength precision gear transmission, transmission efficiency up to 99%, The normal belt type transmission efficiency of 90% -95%, And the belt type easy to loose and slippery, service life is short, when the belt becomes loose, the transmission efficiency will drop a lot. Under normal circumstances the same model with the power of the gear particles than the belt drive particle machine output is higher 20% -30%.
Counter-flow Cooler machine
Eight corner structure without residue
High temperature resistance of Inspection window
Direct type reducer, Motor with emergency stop
Rotary Screener machine
Low breakdown, less maintenance, simple operation, the gearbox adopts non-gear transmission way, dispense with oil lubrication, avoid oil pollution with oil leakage
It changes the tail sliding support into elastic support, avoid deposited material avoid cross contamination
The inner structure of outlet adopts streamline design which can avoid materials jam and cross-contamination
Widely used in grading and sieving of pellets and crushed materials, secondary cycle crush process, cleaning and grading of some pellets and powder.
Technical Parameters of Animal Feed Pellet Making Machine Pellet Mill Plant
|1. material receiving section|
|105||granule material clean sieve||SCY80||0.75|
|2. material grinding section|
|206||Tear-circle hammer mill||SDH-ZW50C||1.5|
|211||Tear-circle hammer mill||SDH-ZW80B||90|
|3. batching and mixing section|
|313||double shaft high efficient mixer||SSHJ.2||18.5|
|316||double shaft high efficient mixer||SSHJ.4||30|
|4. pelleting section|
|5. packing section|
|507||automatic packing scale||SDBY-P|
|508||seal conveyor machine||TFKB40||3|
Double SZLH420 feed pellet plant is 20T/H Feed pellet plant. Have Products in Stock, Fast Delivery
Final Pellets Apply to
