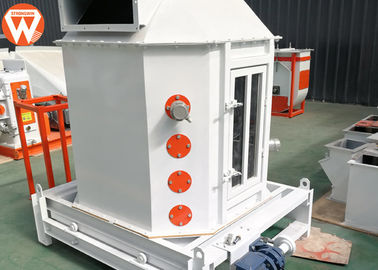

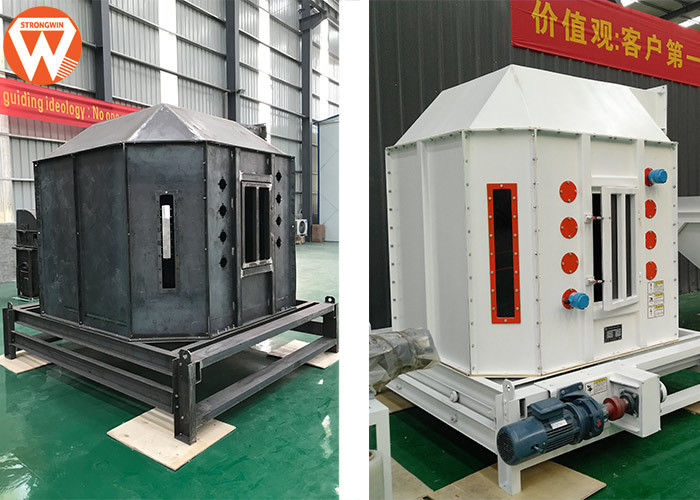

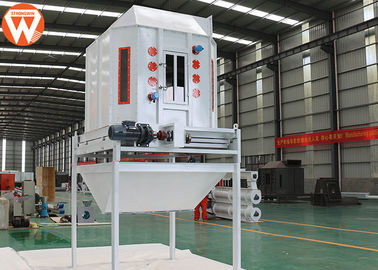

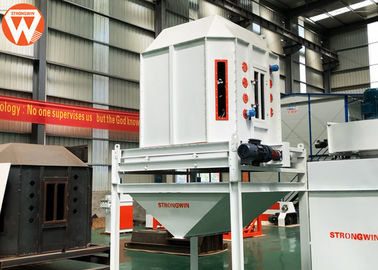

High Efficiency Feed Pellet Cooler Counter Flow For Cooling Granule Materials

Reliable High Cooling Efficiency Counter-flow Feed Pellet Cooling Machine

Counter-flow Feed Pellet Cooler Introduction

Cooling separator is cooling and sieving equipment combination equipment, air-cooled cooler has the advantages of convenient installation, low operation cost, place for the lack of water resources, it can be used in high temperature, high humidity, dust environment, the characteristics of air cooled chiller, has the advantages of simple structure, small volume, light weight, low thermal resistance, heat transfer area etc.. The adjustable diamond bulker is used to maximize the uniform accumulation of material in the tank. The reciprocating discharge mechanism of the slide valve is adopted, and the movement is stable and reliable, and the residue is small. Low energy consumption and easy operation. After cooling, the finished product temperature is not higher than room temperature +3 ° C ~ 5 ° C, suitable for the cooling of granular materials.

Main Parts and Functions of Pellets Cooling Machine

1. The pellet cooler takes advantage of counter current cooling principle to cool the pellet material with high temperature high humidity. It can avoid the shock cooling phenomenon when the cold air contacts with the hot material, thus can prevent the pellet appearance generating crazings.

2. Cooling tank adopts octagon design, which can ensure the cooling has no dead angles.

3. Adopt air-closed material feeder, large inlet air area, outstanding cooling effect.

4. The material discharging device adopts slide valve reciprocating type, stable and reliable running, little residual.

5. The cooled feed pellets temperature won’t be higher than ambient temperature + 3~5℃, also suitable for cooling particle material.

6. High cooling speed and favorable cooling effect. The counterflow pellets cooler can cool more pellets while maintaining optimum pellet quality.

7. Lower power consumption, easy operation and cleaning, high production efficiency.

Advantage:

•  Eight corner structure without residue
•  High temperature resistance of Inspection window
•  Direct type reducer, Motor with emergency stop
•  Simple structure, small volume, light weight, low thermal resistance, heat transfer area

•  The cooling time is adjusted by changing distance of level indicator.

Technical Parameters:
