Plant Name: | Completely Pakistan Poultry Chicken Feed Pellet Production Plant | Yield: | 5t/h |
---|---|---|---|
Power: | 300kw | Type: | Manual And Automatic Type |
Main Machine: | Crusher,mixer,pellet,crumbler,cooler,screener Machine | Application: | Poultry Chicken Feed |
Highlight: | feed pellet plant,pellet making equipment |
Completely Pakistan Poultry Chicken Feed Pellet Production Plant
Introduction of Poultry Chicken Feed Pellet Production Plant
The full line including: Raw materials of receiving,cleaning,grinding system, System of batching&mixing, System of pelleting & cooling, System of packing, System of Auxiliary(Air compressor, Steam supply system, Liquid adding machine, Electricity Hoist)
The final pellet can apply to Poultry chicken feed, livestock cattle pig feed.(According Customers need, the plan will different)

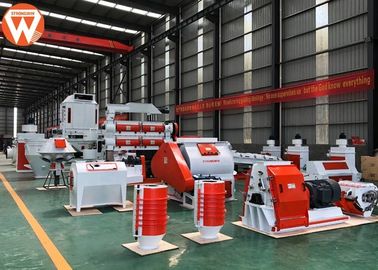

Detail machine display of Complete feed plant
Water-drop hammer crusher machine
Imported high-quality bearings are used, and the operating temperature rises low. A variety of screen specifications are available, quick-opening door opening machine and elastic screen mechanism, quick screen change, convenient operation and maintenance, SKF bearing and bearing base, tungsten carbide spray welding hammer, bearing temperature display.
Double shaft paddle mixer
Set return air duct, no leakage of dust, fully meet environmental protection requirements; Can be equipped with compressed air cleaning system to reduce residual amount to minimum level; Customized special atomizing spray system; Add molasses , grease and other more uniform
Ring die feed pellet machine
Imported high-quality bearings and oil seals are used to ensure efficient, stable and low noise operation. The feeder adopts a variable frequency speed regulating motor to ensure the quality of the pellet discharge.
Feed crumbler machine(According customers need)
Three-roller structure, balanced and continuous work, advantages of equal sizes of finished products, high broken efficiency.
Less grading returned materials, high rate of finished products, Installed with feeder, low consumption.
Counter-flow cooler machine
On the Principle of the advanced counter flow cooling, SKLN series counter flow cooler is equipped with a reciprocating grate type discharging device, which is characterized by its smooth material flowing and uniform discharging.
Screener machine
Low breakdown, less maintenance, simple operation, the gearbox adopts non-gear transmission way, dispense with oil lubrication, avoid oil pollution with oil leakage
It changes the tail sliding support into elastic support, avoid deposited material avoid cross contamination
Technical Parameters of 5t/h Poultry Chicken Feed Pellet Production Plant
Item | Name | Type | Qty | Power (KW) |
Part 1. Raw material receiving& crushing system | ||||
1-103 | Impulse Filter | TBGM20 | 1 | |
1-105 | Bucket Elevator | TDTG36/23 | 1 | 4 |
1-106 | Cylinder Filtering Sieve | TCQY63 | 1 | 0.75 |
1-107 | Additive Blender | TCXT20 | 1 | |
1-110 | Impeller speed regulating Feeder | SWLY60 | 1 | 1.1 |
1-111 | Crusher | SFSP66*60 | 1 | 55 |
1-114 | Impulse Filter | TBLMa24 | 1 | |
1-116 | Wind-shielding Screw conveyor | TLSB20 | 1 | 2.2 |
Part 2. Mixing System | ||||
2-202 | Bucket Elevator | TDTG36/23 | 1 | 4 |
2-203 | Powder Screener | SCQZ60 | 1 | 5.5 |
2-207 | Feeder for additive | 1 | ||
2-208 | Mixer | SLHS1.0 | 1 | 11 |
2-210 | Scraper Conveyor | TGSU20 | 1 | 3 |
Part 3. pelleting system | ||||
3-308 | Pellet Mill | SZLH350 | 1 | 57.95 |
3-310 | Cooler | SKLN3 | 1 | 1.5 |
3-311 | Crumbler | SSLG15*150 | 1 | 11 |
Part 4. Packing system | ||||
4-401 | Bucket elevator | TDTG36/18 | 1 | 3 |
4-402 | Rotary Screener | SFJH80*2d | 1 | 2.2 |
4-409 | Auto Packing Scale | 10-50KG | 1 | 1.5 |
4-410 | Stitch conveyor | 1 | 1.5 | |
Part 5. Auxiliary Equipment System | ||||
5-506 | Steam Supplying System | 1 | ||
5-507 | Oil adding System | 1 | 2.2 | |
5-508 | Oil Adding Tube | 1 | ||
5-509 | Calabash Crane | 1 | 3 |
