| Name: | With Double Steam Conditioner Pig Feed Pellet Production Plant | Power: | 300KW |
|---|---|---|---|
| Capacity: | 5T/H | Final Pellet: | 0.9-15mm |
| Motor: | Siemens | Bearing: | SKF |
| Main Machine: | Crusher,mixer,pellet,crumbler,cooler,screener Machine | Application: | Livestock Pig Feed |
| High Light: | animal feed processing plant,pellet making equipment |
||
With Double Steam Conditioner Pig Feed Pellet Production Plant
Features of Pig Feed Pellet Production Plant
This type pig feed pellet production plant use Double Steam Conditioner ring die feed pellet machine, make the final pellet More mature, more conducive to animal absorption, and More nutritious and delicious.
Use Feed crumbler machine, can application to small piggy.
Craft of Pig Feed Pellet Production Plant
Materials crusher--Mixer--Pelletizer--crumbler(according customer need)--Feed cooler--Screener machine--Packing machine
Tear-circle feed crusher machine
Impeller feeder, feed evenly, prevent blocking
Cylinder automatic dust removal
Tungsten carbide hammer
Hammer sieve distance 0.8-1mm
Serpentine Spring Coupling, Protecting Motor
Double shaft paddle mixer
Mixed in gravity-free state, no segregation, variety of liquids can be added. Two open doors structure, discharge rapidly, no leakage, less residue.

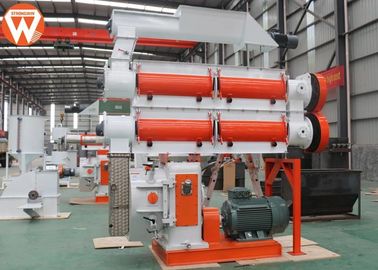

Ring die feed pellet machine
Imported high-quality bearings and oil seals are used to ensure efficient, stable and low noise operation. The feeder adopts a variable frequency speed regulating motor to ensure the quality of the pellet discharge.
Feed crumbler machine
Three-roller structure, balanced and continuous work, advantages of equal sizes of finished products, high broken efficiency.
Counter-flow cooler machine
Eight corner structure without residue
High temperature resistance of Inspection window
Direct type reducer, Motor with emergency stop
Rotary Screener machine
Low breakdown, less maintenance, simple operation, the gearbox adopts non-gear transmission way, dispense with oil lubrication, avoid oil pollution with oil leakage
Technical Parameters of Pig Feed Pellet Production Plant
| NO. | Name | Model | Qty | Power(KW) |
| Section1. System of receiving&cleaning & grinding of raw material | ||||
| 109 | Pneumatic valve | TZMQ25x25 | 1 | |
| 109-1 | Buffer bin | 1 | ||
| 110 | Impeller speed regulation speeder | SWLY1 | 1 | 1.1 |
| 111 | Hammer mill | SDH-ZW29C | 1 | 55 |
| 116 | Seal Screw conveyor | TLSB20 | 1 | 2.2 |
| Section2:System batching&mixing | ||||
| 210 | Pneumatic valves | TZMQ20*20 | 1 | |
| 211 | Double shaft blade mixer | SLHY1.0 | 1 | 11 |
| 212 | Buffer bin | 2m³ | 1 | |
| 214 | Scraper conveyor | TGSU20 | 1 | 3 |
| Section3:System of pelleting & cooling | ||||
| 309 | Pellet machine | SZLH350 | 1 | 59.5 |
| 310 | Site control cabinet | 1 | ||
| 311 | Air seal machinery | GFY250 | 1 | 1.1 |
| 312 | Counter flow cooler | SKLN4 | 1 | 1.1 |
| 313 | Pellet crushing | SSLG15×100 | 1 | 5.5 |
| Section4:System of packing | ||||
| 401 | Bucket elevator | TDTG36/18 | 1 | 3 |
| 402 | Rotary screen | SFJH100*2d | 1 | 2.2 |
| 409 | Automatic Packing scale | 10-50KG | 1 | 1.5 |
| 410 | Sealer & conveyor | 1 | 1.5 | |
| Section5:System of Auxiliary(Optional) | ||||
| 501 | Air compressor | 1 | 15 | |
| 502 | Steam supply system | 1 | ||
| 503 | Liquid adding machine | 1 | 2.2 | |
| 504 | Electricity Hoist | 1 | 2.2 | |
