Product Details:
Payment & Shipping Terms:
|
| Type: | 5T/H Poultry Chicken Feed Pellet Making Plant In UK With Siemens Motor | Capacity: | 5T/H |
|---|---|---|---|
| Motor: | Siemens | Bearing And Bearing Base: | SKF |
| Pellet Size: | 0.9-12mm | Main Machine Power: | 300kw |
| Main Machine: | Crusher,mixer,pellet,crumbler,cooler,screener Machine | Application: | Poultry Animal Feed |
| High Light: | feed pellet plant,pellet making equipment |
||
5T/H Poultry Chicken Feed Pellet Making Plant In UK With Siemens Motor
Advantages of Poultry Feed Pellet Making Plant

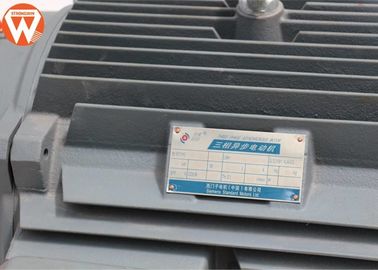

1. Brand hard tooth surface gear reducer 2. Siemens motor 3. Mechanical resistance rotary level positioner 4. Important part SKF bearing 5. Openable door cover is equipped with safety protection switch, protection switch pre-rotation integrated type Junction box 6. Delixi pneumatic components 7. Zhenjiang three-dimensional PVC lifting belt, polymer nylon bucket 8. High wear-resistant cold drawing spiral blade 9. Detachable slide tube, slide tube elbow
Craft of Poultry Feed Pellet Making Plant
Materials crusher--Mixer--Pelletizer--Crumbler(according customer need)--Feed cooler--Screener machine--Packing machine
Main machine of Poultry Feed Pellet Making Plant

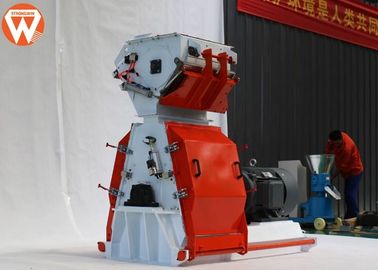

Water-drop hammer crusher machine
Adopting international advanced technique, crush room is designed as water drop. With special twice crush design, crush efficiency is greatly improved. With full open operating door, elasticity sieve pressing mechanism, easy to maintain and replace sieve.

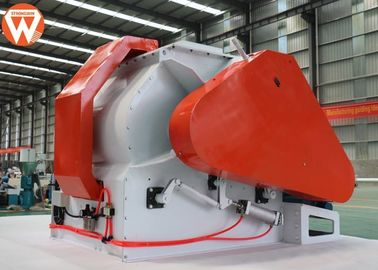

Double shaft paddle mixer
The improvement of open door shaft and link mechanism ensure that the angle of openning door is larger than 90-(the materials can’t fall on the door), close door which is deadlocked.
Advanced adding and spraying system could be added many kinds of liquid and solid at the same time, Precision spraying and convenient control.

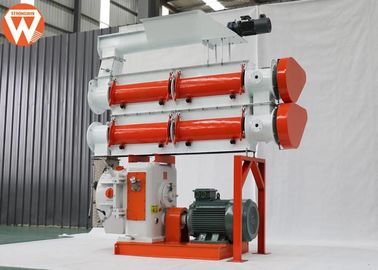

Ring die feed pellet machine
Equipped with steam automatic regulatory system to keep refining temperature constant
Larger type strengthen feeding conditioner in entire stainless steel with frequency speed control, ensure the high quality of pellet feed.
Crumbler machine
Three-roller structure, balanced and continuous work, advantages of equal sizes of finished products, high broken efficiency.
Counter-flow cooler machine
Eight corner structure without residue
High temperature resistance of Inspection window
Direct type reducer, Motor with emergency stop
Screener machine
Low breakdown, less maintenance, simple operation, the gearbox adopts non-gear transmission way, dispense with oil lubrication, avoid oil pollution with oil leakage
It changes the tail sliding support into elastic support, avoid deposited material avoid cross contamination
Automatic Packing machine
Technical Parameters of Poultry Feed Pellet Making Plant
| NO. | Name | Model | Qty | Power(KW) |
| Section1. System of receiving&cleaning & grinding of raw material | ||||
| 109 | Pneumatic valve | TZMQ25x25 | 1 | |
| 109-1 | Buffer bin | 1 | ||
| 110 | Impeller speed regulation speeder | SWLY1 | 1 | 1.1 |
| 111 | Hammer mill | SDH-ZW29C | 1 | 55 |
| 116 | Seal Screw conveyor | TLSB20 | 1 | 2.2 |
| Section2:System batching&mixing | ||||
| 210 | Pneumatic valves | TZMQ20*20 | 1 | |
| 211 | Double shaft blade mixer | SLHY1.0 | 1 | 11 |
| 212 | Buffer bin | 2m³ | 1 | |
| 214 | Scraper conveyor | TGSU20 | 1 | 3 |
| Section3:System of pelleting & cooling | ||||
| 309 | Pellet machine | SZLH350 | 1 | 59.5 |
| 310 | Site control cabinet | 1 | ||
| 311 | Air seal machinery | GFY250 | 1 | 1.1 |
| 312 | Counter flow cooler | SKLN4 | 1 | 1.1 |
| 313 | Pellet crushing | SSLG15×100 | 1 | 5.5 |
| Section4:System of packing | ||||
| 401 | Bucket elevator | TDTG36/18 | 1 | 3 |
| 402 | Rotary screen | SFJH100*2d | 1 | 2.2 |
| 409 | Automatic Packing scale | 10-50KG | 1 | 1.5 |
| 410 | Sealer & conveyor | 1 | 1.5 | |
| Section5:System of Auxiliary(Optional) | ||||
| 501 | Air compressor | 1 | 15 | |
| 502 | Steam supply system | 1 | ||
| 503 | Liquid adding machine | 1 | 2.2 | |
| 504 | Electricity Hoist | 1 | 2.2 | |
