| Plant Name: | Livestock Horse Feed Pellet Production Plant With Electronic Control System | Capacity: | 5T/H |
|---|---|---|---|
| Pellet Size: | 1-12mm | Main Machine Power: | 300kw |
| Main Machine: | Crusher,mixer,pellet,cooler,screener, Package Machine | Application: | Livestock Horse Feed |
| High Light: | feed pellet plant,animal feed processing plant |
||
Livestock Horse Feed Pellet Production Plant With Electronic control system
Craft of Livestock Horse Feed Pellet Production Plant
Materials crusher--Mixer--Pelletizer--Crumbler(according customer need)--Feed cooler--Screener machine--Packing machine
Raw materials: Grass, hay, wheat straw, corn and soybean etc.
Livestock Horse Feed Pellet Production Plant Main machine introduction
Water-drop hammer crusher machine
Be tested by the high-precision balancing machine, then the hammer mill run more smoothly, which reduces noise and prolongs bearing’s life.
Feeding inlet on the top matches all kinds of feeding mechanisms.
The coarse or fine grinding can be realized by adjusting the gap between the hammer and sifter, thus one machine can be used as two.
Double shaft paddle mixer
The improvement of open door shaft and link mechanism ensure that the angle of openning door is larger than 90-(the materials can’t fall on the door), close door which is deadlocked.
Advanced adding and spraying system could be added many kinds of liquid and solid at the same time, Precision spraying and convenient control.

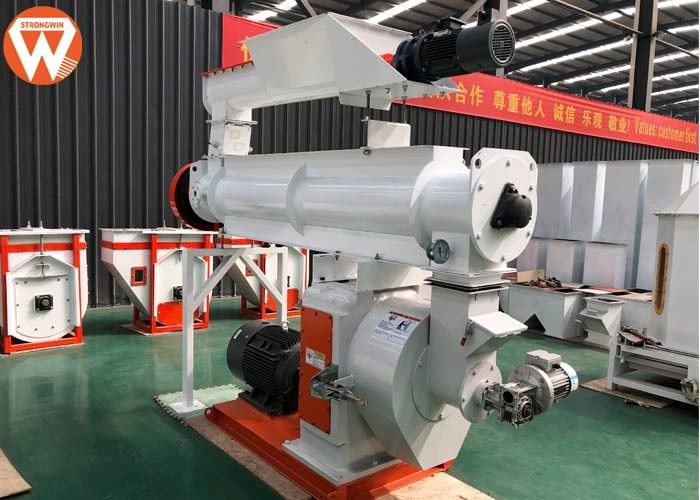

Ring die feed pellet machine
Equipped with force feeding device, can feed grass evenly.
The complete machine transmission parts include electric motor with Switzerland “SKF” high quality bearing, ensure high-efficiency, stable and low noise drive
Counter-flow cooler machine
SKLN series counter-flow cooler is suitable for cooling various kinds of pellets such as pelleted feed, expanded feeds, extruded feeds and flake feeds,etc.
Screener machine
Low breakdown, less maintenance, simple operation, the gearbox adopts non-gear transmission way, dispense with oil lubrication, avoid oil pollution with oil leakage
It changes the tail sliding support into elastic support, avoid deposited material avoid cross contamination
Automatic Packing machine
Technical Parameters of Livestock Horse Feed Pellet Production Plant
| Item | Name | Type | Qty | Power (KW) |
| Part 1. Raw material receiving& crushing system | ||||
| 1 | Grass crusher | FSP500B-22 | 1 | 22 |
| 1-103 | Impulse Filter | TBGM20 | 1 | |
| 1-105 | Bucket Elevator | TDTG36/23 | 1 | 4 |
| 1-106 | Cylinder Filtering Sieve | TCQY63 | 1 | 0.75 |
| 1-107 | Additive Blender | TCXT20 | 1 | |
| 1-110 | Impeller speed regulating Feeder | SWLY60 | 1 | 1.1 |
| 1-111 | Crusher | SFSP66*60 | 1 | 55 |
| 1-114 | Impulse Filter | TBLMa24 | 1 | |
| 1-116 | Wind-shielding Screw conveyor | TLSB20 | 1 | 2.2 |
| Part 2. Mixing System | ||||
| 2-202 | Bucket Elevator | TDTG36/23 | 1 | 4 |
| 2-203 | Powder Screener | SCQZ60 | 1 | 5.5 |
| 2-207 | Feeder for additive | 1 | ||
| 2-208 | Mixer | SLHS1.0 | 1 | 11 |
| 2-210 | Scraper Conveyor | TGSU20 | 1 | 3 |
| Part 3. pelleting system | ||||
| 3-308 | Pellet Mill | SZLH350 | 1 | 57.95 |
| 3-310 | Cooler | SKLN3 | 1 | 1.5 |
| Part 4. Packing system | ||||
| 4-401 | Bucket elevator | TDTG36/18 | 1 | 3 |
| 4-402 | Rotary Screener | SFJH80*2d | 1 | 2.2 |
| 4-409 | Auto Packing Scale | 10-50KG | 1 | 1.5 |
| 4-410 | Stitch conveyor | 1 | 1.5 | |
| Part 5. Auxiliary Equipment System | ||||
| 5-506 | Steam Supplying System | 1 | ||
| 5-507 | Oil adding System | 1 | 2.2 | |
| 5-508 | Oil Adding Tube | 1 | ||
| 5-509 | Calabash Crane | 1 | 3 | |
