Large Yield Animal Feed Production Line Stable With Mixer Hammer Mill Machine

Large Yield Animal Feed Production Line Stable With Mixer Hammer Mill Machine
Large Yield Animal Feed Production Line Stable With Mixer Hammer Mill Machine

Large Image :  Large Yield Animal Feed Production Line Stable With Mixer Hammer Mill Machine

Product Details:
Place of Origin: Henan,China
Brand Name: Strongwin
Certification: CE,ISO
Model Number: 15-20t/h
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: container
Delivery Time: 30 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10sets/month
Detailed Product Description
Characteristics: Running Efficient, Stable Motor: Siemens Motor
Bearing: NSK Or SKF Function: Make Chick Feed,laying Hen Broiler Feed
Main Equipments: Hammer Mill ,mixer, Pellet Machine, Cooler,sieve Pellets Diameter: 2,3,4,5,6,7,8 Mm
High Light:

animal feed plant machinery

,

pellet production equipment

Large Yield Laying Hen Broiler Chicken Animal Feed Making Machine Line

Introduction

This complete Livestock Feed Production Line is suitable for producing all kinds of feed pellets for various animals such as chicken, pig, cow, cattle, goat, rabbit and etc.

Just use different size of ring die mould to produce different animal feed pellet according to the requirement of different animal and poultry.

The replacement of the ring die mould is very easy.

Application: for making cattle, geese, pig, duck, chicken, sheep, rabbit, and other animals, livestock and poultry feed.
 Large Yield Animal Feed Production Line Stable With Mixer Hammer Mill Machine 0
Animal Feed Production Line Process flow

Raw Materials for Feed Pelletizing
The feed pellets are usually made of corn, brown rice, paddy, sorghum and soybean meal etc.

Raw Material Grinding Process
General-purpose products, stableperformance, widely used in large andmedium-sized feed, food processing enterprises of raw materials crushed.
The machine uses direct drive, scientific and reasonable hammer arrangement, hammer sieve clearance, finished fineness uniform. Crushing chamber second strike technology. Selection of imported high-quality bearings, low operating temperature.
A variety of screen size optional, quick open door mechanical and elastic pressure screen mechanism, for screen fast, easy operation and maintenance.
NSK bearings, SKF bearing, tungsten carbide alloy spray hammer. Bearing temperature display instrument

Feed Material Mixing Process
Mixing speed is short, the mixing cycle is short, 30-120 seconds / batch; mixing uniformity is high, CV ≤ 5%, and does not produce segregation;
machine mixing process is moderate, loading variable range;
Expected to meet the environmental requirements; can be equipped with compressed air cleaning system, the residue to a minimum level;
can be customized for special atomization spray system; add molasses , Grease and so more uniform;

Feed Pelletizing Process
From the CPM models, Europe and the United States box.
The main drive uses high precision gear drive, the output is about 20% higher than the belt drive type.
Selection of imported high-quality bearings, oil seals, to ensure that the machine running efficient, stable, low noise.
Feeder using frequency control motor to ensure that the quality of particles discharged.
The international advanced level of compensation type serpentine spring coupling, with a new structure, compact, safe, low noise, low fault performance.
Ring mold lifting device, gear box gear oil automatic cooling system.

Feed Pellet Cooling Process
The latest octagonal cooling box design, no cooling dead ends. The use of closed feeder feed, into the air area, cooling effect is significant.
The use of adjustable type of loose material, so that the material evenly and evenly stacked in the cabin.
The use of slide valve reciprocating discharge mechanism, the movement is smooth, reliable, small residue.
Low energy consumption, easy operation.
After cooling the finished product temperature is not higher than room temperature+3 ℃ ~ 5 ℃, suitable for the cooling of granular materials.

Feed Pellet Crushing Process
Different poultry, livestock or aquatic feed pellets are with different sizes. Some big ones should be crushed into small ones. Roll type feed pellet crumbler is just the equipment for feed pellet crushing. Double-roll feed pellet crumbler is suitable for crushing poultry feed, such as chicken feed, duck feed and goose feed etc.

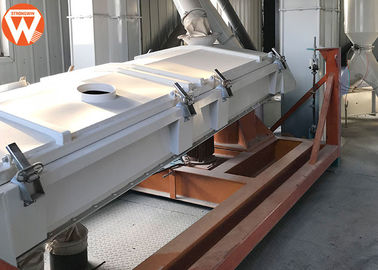

Feed Pellet Screening and Grading Process
Combination of the circle, oval, straight three kinds of movement, screening effect is good. Screen ship drive with belt drive, emphasis on balance, low noise.

Screen tail support for the improved elastic support, vibration, low noise. Strengthen the base to ensure a more balanced operation of the equipment.

Feed Pellet Packing Process
High-precision weighing indicator, import PLC,high-precision analog load cell composed of weighing control system.
Applicable to materials with poor mobility. In the weighing mechanism, the hopper on the system with a suction port, can effectively control the spill of equipment dust to ensure that the dust concentration in the working environment, and can make the scale of the body pressure to maintain balance with the outside world, to avoid the air flow weighing accuracy influences.
Packing accuracy: 0.2% Packing range:10-50kg / bag

Automatic PLC Control System
With the automatic PLC control system, the animal feed processing line is with high efficiency and convenient operation.
1.Full automation of the complete production line
2.Constant product quality at a high throughput rate
3.Lower manpower requirements, less time cost
4.Better monitoring of the production process
 Large Yield Animal Feed Production Line Stable With Mixer Hammer Mill Machine 1
Technical Parameters


15-20 T/H Animal Feed Pellet Production Line
No.Product nameModelQtyPower(kw)
1. material receiving section
104Bucket elevatorTDTG48/2825.5
105granule material clean sieveSCY8010.75
106permanent magneticTXCT251
111rotary distributorTFPX.810.55
2. material grinding section
205Impeller feederSYLW311.50
206Tear-circle hammer millSDH-ZW50C1132
209seal screw conveyorSWLL2526.00
210Impeller feederSYLW311.5
211Tear-circle hammer millSDH-ZW80B190
212Fan4-72-N04.5A111
213pulse dust collectorTBLFa.421
3. batching and mixing section
311small material feeding 1
312pneumatic valveTZMQ32*321
313 316

Double shaft high efficient mixer
Double shaft high efficient mixer

SSHJ.2 SSHJ.41 118.5 30
317LevelerRP1
318Vibration hammer 1
319scrapper conveyorTGSU2513.00
322powder material clean sieveSCQZ80111
4. pelleting section
404vibration pneumatic hammer 4
407Pellet machineSZLH4202220.00
409counter-current coolerSKLN623.0
410crusherSSLG20×170230
412Fan4-72No6C230
413dischargerSKL10002
415Bucket elevatorTDTG40.2828
416classic sieveSFJH12526
5. packing section
507automatic packing scaleSDBY-P2
508seal conveyor machineTFKB4026
510pulse dust collectorTBLFa.241
511seal machinery 10.75
512Fan4-72-N04.5A17.50
513pulse dust collectorTBLFa.301
6.auxiliary system
601Air compressor 122.00
602storage air tank 1
603Dryer 1
604liquid adding machineSYTV6313.00
606Steam boiler system2T1



animal feed production line
