Product Details:
Payment & Shipping Terms:
|
| Materials: | Stainless Steel | Type: | Double Shaft |
|---|---|---|---|
| Name: | Animal Feed Mixing Equipment | Powder: | 5.5kw |
| Capacity: | 250kg/h | Application: | Feed Pellet Line |
| High Light: | Double Shaft Paddle Mixer Machine,250kg/H Paddle Mixer Machine,5.5kw Feed Mixer Machine |
||

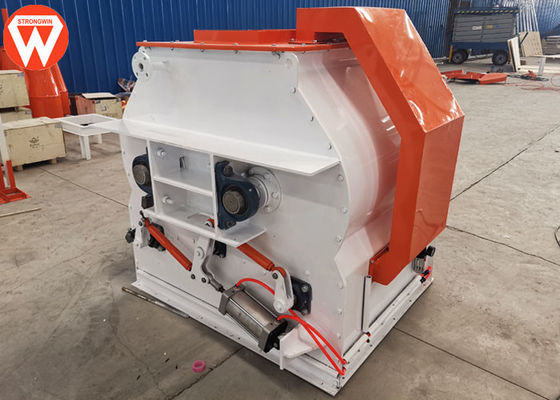

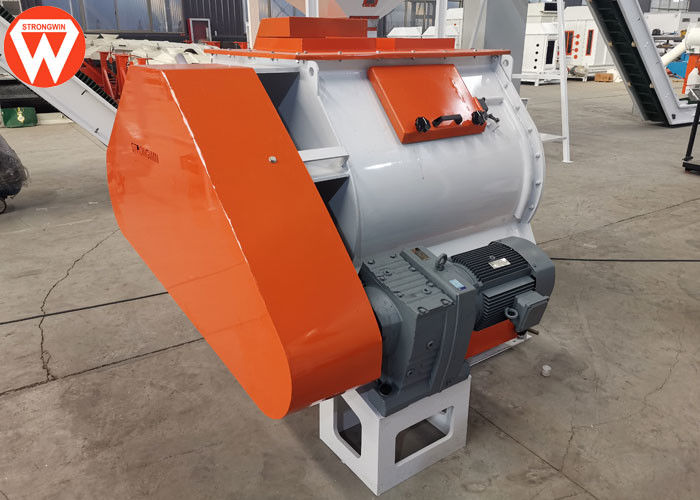

Livestock Feed Grinder Paddle Mixer Animal Feed Mixing Equipment
Description of Animal Feed Mixing Equipment
This type is Double Shaft Paddle Mixer machine, Compare with other mixers have follow advantages:
Short mixing time(40-120sec/batch), high evenness degree(CV≤5%)may be up to 2%.
Conveyed by three chains, run in low speed, stable operation movement.
The improvement of open door shaft and link mechanism ensure that the angle of openning door is larger than 90-(the materials can’t fall on the door), close door which is deadlocked.
Advanced adding and spraying system could be added many kinds of liquid and solid at the same time, Precision spraying and convenient control.
Features of animal feed mixing equipment
1.Hardened gear reducer
2.SKF bearing and Bearing seat
3.Two injection oil systems
4.Paddle: Laser cutting machine processing, 3mm distance with mixed wall
5.Bottom cylinder type discharge
Technical parameters of animal feed mixing equipment
| Main Technical Parameters of Double shaft Paddle Mixer | ||||
| Model | SLHSJ0.5 | SLHSJ1.0 | SLHSJ2.0 | SLHSJ4.0 |
| Power(kw) | 5.5 | 11 | 18.5 | 37 |
| Capacity(kg/h) | 250 | 500 | 1000 | 2000 |
