Product Details:
Payment & Shipping Terms:
|
| Name: | Animal Food Production Line Of Cattle Feed Cost | Power: | 60KW |
|---|---|---|---|
| Voltage: | 380V/50Hz | Type: | Belt Type |
| Capacity: | 1.5-2.5t/h | Feed Size: | 2-15mm |
| Installation: | Offer Manual Book And Engineer's Guidance | Service: | 24 Hours Online Technical Support |
| High Light: | Cattle Poultry Pellet Feed Plant,1.5T/H Poultry Pellet Feed Plant,Chicken Poultry Pellet Feed Plant |
||

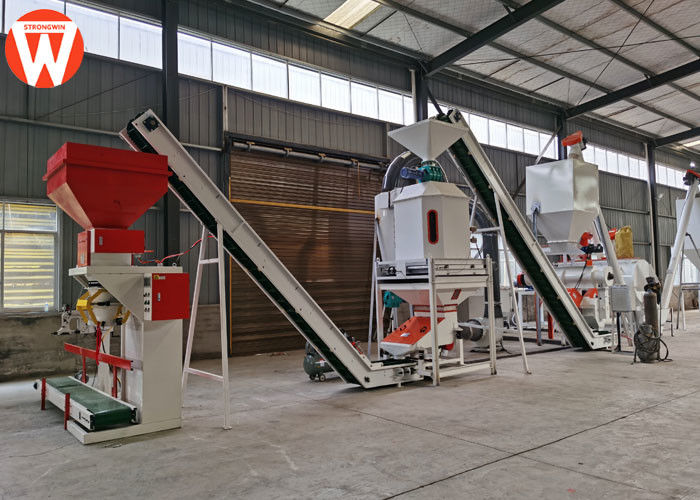

1.5T/H Chicken Cattle Poultry Pellet Feed Plant 380V
Strongwin manufacture 1-30t/h feed pellet line for Customers
About SZLH250 feed line, we supply Plan A and Plan B for Customers
Plan A: Raw Material → Feed Grinding → Feed Mixing → Feed Pelletizing → Pellet Cooling → Screening & Grading → Pellet Packing
Plan B: Raw Material → Feed Grinding → Feed Mixing → Feed Pelletizing → Pellet Cooling → Pellet crumbler → Rotary grading screen → Pellet Packing
Both the two plans are Simple operate and small land area. Popular among Customers at home and abroad.
| No. | Product | Type | Power(KW) |
| 1.Raw materials receiving and crushing and mixing system | |||
| 101-1 | Screw Conveyor | TLSS16 | 2.2 |
| 101-2 | Screw Conveyor | TLSS20 | 3 |
| 103 | Imitation grinder (including iron remover) | SFPZ56*30 | 18.5 |
| 104 | U-shaped ribbon horizontal mixer | LHY1.0 | 7.5 |
| 2.Pelleting system | |||
| 201 | Screw Conveyor | TLSS20 | 3 |
| 202 | To be granulated bin (including window) | 1.0m³ | |
| 203 | Pellet Machine(include control box) | SZLH250 | 11*2+2.2+0.75 |
| 3.Cooling system | |||
| 301 | Skirt belt conveyor | QBPS400 | 2.2 |
| 302 | Buffer bucket | 0.2m³ | |
| 303 | Stainless steel air shutter | GFY250 | 1.1 |
| 304 | Counter Flow Cooler | SKLN1.0 | 0.75 |
| 305 | Air Blower | 4-72No4A | 5.5 |
| 306 | Unloader | XL60 | |
| 307 | Wind shut | GFY215 | 0.75 |
| 308 | Vibrating screen | SFJZ60*1d | 0.25 |
| 4.Screening and packaging system | |||
| 401 | Skirt belt conveyor | QBPS400 | 2.2 |
| 402 | Buffer bucket | 0.5m³ | |
| 403 | Packing scale with sewing bag | 2.2 | |
| Optional | Simple oil filling system (including pipes and nozzles) | SYVT32 | 1.5 |
| Air compression system | 3 | ||
| Boiler with link system | 0.3t/h | 3 | |
| Crumbler machine | SSLG15×80 | 5.5 | |
| Price | Welcome contact us for latest price | ||
Application of animal food production line
SZLH250 animal feed pellet machine is widely used to produce pellets for animals,such as chicken, duck, Pigeon, pig, horse, cattle sheep and other poultry and livestock animal. The pellets by our machine have firm and smooth structure and easy digest
