PLC Controlled Aqua 4t/H Aqua Fish Feed Pellet Extruder

PLC Controlled Aqua 4t/H Aqua Fish Feed Pellet Extruder
PLC Controlled Aqua 4t/H Aqua Fish Feed Pellet Extruder

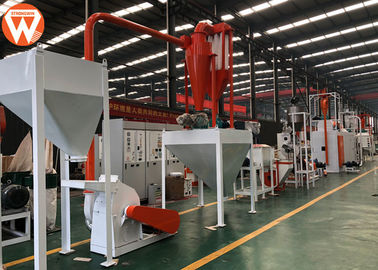

Large Image :  PLC Controlled Aqua 4t/H Aqua Fish Feed Pellet Extruder

Product Details:

Place of Origin: China
Brand Name: Strongwin
Certification: CE,ISO,SGS
Model Number: DSP200 wet type

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Case or In Container
Delivery Time: 10-30 working days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 sets per year
Detailed Product Description
Products: Large Capacity DSP200 Pet Food Fish Feed Pellet Extruder Manufacturing Machine Capacity: 3-4t/h
Water-drop Crusher Machine: 4-5t/h Horizontal Ribbon Mixer: Capacity:2m³, Time:10-15 Minutes
Dryer: 4t/h Counter Flow Cooler: 4t/h
Application: Kinds Of Aqua Fish Feed Shipping: By Sea
High Light:

4t/H Fish Feed Pellet Extruder

,

Aqua Fish Feed Pellet Extruder

Large Capacity DSP200 Pet food Fish Feed Pellet Extruder Manufacturing Machine



Advantages of Fish Feed Pellet Extruder Manufacturing Machine



1. Advanced wet extrusion technology, high capacity and low energy consumption.

2. The feed pellet line occupies less floor space and needs low investment in construction work. The modular structure is convenient for assembly and disassembly, facilitating the shipment and installation.

3. PLC controlled, The operation is simple and convenient.

4. Wide applicable scope: The plant can produce both floating and slow-sinking fish feed, pet food, applicable for fish farm holders and fish feed manufacturers.



Description of Fish Feed Pellet Extruder Manufacturing Machine



Feed grinder→Feed mixer→wet type Fish feed extruder→Pellets dryer→Automatic weighing and packing machine



Material grinding—feed hammer mill

Raw material ingredients should be grinded to the required size by feed grinder. We supply two types of feed grinders to meet your different requirements: feed Hammer Mill is suitable for small or medium sized feed extruding factories; SPSF feed Hammer mill is used for grinding raw materials by large and medium livestock and aqua feed mills;



Material mixing—feed mixer

Mixing the material thoroughly can ensure extruding efficiency and improve the feed quality. We supply two kinds of feed mixers for you to choose: double-shaft efficient mixer can be applied to mixing powdery, granular, flaky and blocky materials while feed ribbon type mixer is mostly used for mixing powdery materials. These two kinds of mixers can be customized with atomizing spraying system which will add liquid like molasses and grease to material more evenly.



Extruding process—Wet type floating feed pellet extruder

The wet type fish feed machine is with the conditioner and need to equip the steam boiler. Capacity of wet type fish feed extruder is higher than dry type ones, so usually the wet type extruder machine is suitable for large feed pellet factory.



Pellets drying—feed pellet dryer

Our mesh belt dryer is a continuous convective belt dryer. Pellets formed through the extruder are stacked in layers on a wire mesh or perforated plate belt conveyor and conveyed continuously through drying chambers.

During this process, the drying air is passed repeatedly through the products layer until pellets have the optimum moisture content before leaving the dryer. While if you choose wet type fish feed machine, we recommend the gas type pellet dryer.



Pellet packing—electronic packing machine

To make the finished pellets easy to store, transport and catch the clients’ eyes, they should be packed properly. With our electronic weighing and packing machine, the finished pellets can be packed into bags, weighed, conveyed, and sealed automatically, which saves labor and time greatly and meet the requirements of large scale production. For this packing machine, automatic heat typing code, automatic bag sewing and automatic thread cutting can be optional functions.



Technical Parameters of Fish Feed Production Line



Main Technical Parameters of Main equipments of DSP200-B fish feed extruder line
Model Power(kw) Capacity(kg/h) Size(mm) Weight(kg)
Water-drop crusher machine 55 4000-5000 2100*1200*1500 1200
Horizontal ribbon mixer 22 Capacity:2m³, Time:10-15 minutes 2800*2800*2000 3600
Vertical mixer 3 1.5m³ 1300*950*3100 350
DSP200-B feed extruder machine Main Power:132kw
Feeding power:2.2kw
Cut power:3.0kw
Condition power:4.0kw
3000-4000 6600*2800*2330 4800
Dryer Mesh belt motor power:
5.5 kw
Exhaust fan power: 4.0 kw The circulation fan power:
2.2kw The required steam:1t/h
4000 6200*1600*2200 3200
Rotary spray oil seasoning cylinder Main motor power:3 Oil pump power:0.55 Heating power: 1.5 4000-4500 5000*850*1650 390
Counter flow cooler Fan power: 5.5kw discharger power:0.75kw 4000 2200*1700*2800 2200
Automatic weighing package 1.1 ≤300 bag/h 1-50kg/bag 2400*800*2940 576
Steam boiler 0.4-0.8MPa 2t/h
Electric control system



PLC Controlled Aqua 4t/H Aqua Fish Feed Pellet Extruder 0
