| Product Name: | 10T/H Animal Feed Pellet Production Line | Capacity: | 8-10T/H |
|---|---|---|---|
| Pellet Size: | 2-10mm | Application: | Animal Feed |
| Main Machine: | Crusher,mixer,pellet,crumbler,cooler,screener Machine | Service: | Engineers Design And Installation |
| High Light: | 10mm Feed Pellet Production Line,Sheep Feed Pellet Production Line |
||
10T/H Animal Poultry Feed Granulation Line With Steel Structure Shipping To Mali
Introduction of Animal Poultry Feed Granulation Line
Raw Material → Feed Grinding → Feed Mixing → Feed Pelletizing → Pellet Cooling → Pellet Crushing → Screening & Grading → Pellet Packing
Water-drop hammer grinding machine
Fine crushing machine, stable performance, widely used in large and medium-sized feed, food processing enterprises, raw material crushing.

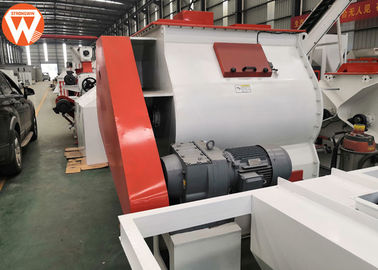

Double shaft paddle feed mixer
Fast mixing speed, short mixing period, 30-120 seconds / batch; high mixing uniformity, CV ≤ 5%, and no segregation; the mixing process of the machine is mild, the loading range is variable; the full-bottom electric opening and unloading Material, fast discharge, low material residual rate
Ring die feed pellet machine
Imported high-quality bearings and oil seals are used to ensure efficient, stable and low noise operation. The feeder adopts a variable frequency speed regulating motor to ensure the quality of the pellet discharge.
Counter-flow cooler machine
On the Principle of the advanced counter flow cooling, SKLN series counter flow cooler is equipped with a reciprocating grate type discharging device, which is characterized by its smooth material flowing and uniform discharging.
Crumbler machine
Low breakdown, less maintenance, simple operation, the gearbox adopts non-gear transmission way, dispense with oil lubrication, avoid oil pollution with oil leakage
It changes the tail sliding support into elastic support, avoid deposited material avoid cross contamination
Screener machine
Low breakdown, less maintenance, simple operation, the gearbox adopts non-gear transmission way, dispense with oil lubrication, avoid oil pollution with oil leakage
Application of Animal Poultry Feed Granulation Line
Widely apply to poultry feed, like chicken, duck, bird, pigeon etc and aniaml feed, like cow catttle, sheep, rabbit, pig, horse etc.
Technical Parameters of Animal Poultry Feed Granulation Line
| 10 T/H Automatic Feed Pellet Production Line | |||
| No. | Product name | Model | Power(kw) |
| 1. material receiving section | |||
| 102 | pulse dust collector | TBLFa.18 | |
| 105 | granule material clean sieve | SCY80 | 0.75 |
| 106 | permanent magnetic | TXCT25 | |
| 108 | powder cleaner | SCQZ80 | 11 |
| 109 | permanent magnetic | TXCT25 | |
| 2. material grinding section | |||
| 206 | Impeller feeder | SYLW3 | 1.5 |
| 207 | series tear-circle hammer mill | SDH-ZW50C | 132 |
| 210 | seal screw conveyor | SWLL25 | 6 |
| 3. batching and mixing section | |||
| 313 | double shaft high efficient mixer | SSHJ.2 | 18.5 |
| 314 | scrapper conveyor | TGSU25 | 3 |
| 315 | Bucket elevator | TDTG48.28 | 5.5 |
| 316 | powder material clean sieve | SCQZ75×65×1 40 | 7.5 |
| 317 | permanent magnetic drum | TXCT30 | |
| 4. pelleting section | |||
| 408 | Pellet machine | SZLH420 | 110 |
| 410 | counter-current cooler | SKLN6 | 1.5 |
| 410-1 | crusher | SSLG20×170 | 15 |
| 415 | classic sieve | SFJH125 | 3 |
| 5. packing section | |||
| 501 | Finished product bin | ||
| 506 | automatic packing scale | SDBY-P | |
| 507 | seal conveyor machine | TFKB40 | 3 |
| 509 | pulse dust collector | TBLFa.24 | |
| 510 | seal machinery | 0.75 | |
| 6.auxiliary system | |||
| 601 | Air compressor | 22 | |
| 603 | liquid adding machine | SYTV32 | 3 |
| 604 | liquid adding pipeline | ||
| 606 | boiler system | ||
