Product Details:
Payment & Shipping Terms:
|
| Name: | 10T/H Chicken Animal Feed Mill Equipment | Product Capacity: | 10T/H |
|---|---|---|---|
| Total Power: | 550kw | Pellet Size: | 0.9-12mm |
| Main Machine: | Crusher,mixer,pellet,crumbler,cooler,screener Machine | Application: | Poultry Animal Feed |
| High Light: | 550kw Animal Feed Equipment,12mm Pellet Animal Feed Equipment |
||
Build A Feed Factory 10T/H Chicken Animal Feed Mill Equipment
Full Set Complete Animal Feed Mill Equipment Including:
Raw materials of receiving,cleaning,grinding system, System of batching&mixing, System of pelleting & cooling, System of packing, System of Auxiliary(Air compressor, Steam supply system, Liquid adding machine, Electricity Hoist), Steel Structure, Silo etc.
,
Detail Introduction of Animal Feed Mill Equipment

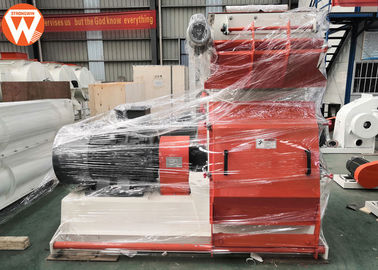

Water-drop hammer crusher machine
Fine crushing machine, stable performance, widely used in large and medium-sized feed, food processing enterprises, raw material crushing.
Double shaft paddle mixer
Fast mixing speed, short mixing period, 30-120 seconds / batch; high mixing uniformity, CV ≤ 5%, and no segregation; the mixing process of the machine is mild, the loading range is variable; the full-bottom electric opening and unloading Material, fast discharge, low material residual rate
Ring die feed pellet machine
Imported high-quality bearings and oil seals are used to ensure efficient, stable and low noise operation. The feeder adopts a variable frequency speed regulating motor to ensure the quality of the pellet discharge.
Crumbler machine
Three-roller structure, balanced and continuous work, advantages of equal sizes of finished products, high broken efficiency.
Less grading returned materials, high rate of finished products, Installed with feeder, low consumption.
Counter-flow cooler machine
On the Principle of the advanced counter flow cooling, SKLN series counter flow cooler is equipped with a reciprocating grate type discharging device, which is characterized by its smooth material flowing and uniform discharging.
Screener machine
Low breakdown, less maintenance, simple operation, the gearbox adopts non-gear transmission way, dispense with oil lubrication, avoid oil pollution with oil leakage
It changes the tail sliding support into elastic support, avoid deposited material avoid cross contamination
Technical Parameters of Animal Feed Mill Equipment
| 10 T/H Automatic Feed Pellet Production Line | |||
| No. | Product name | Model | Power(kw) |
| 1. material receiving section | |||
| 102 | pulse dust collector | TBLFa.18 | |
| 105 | granule material clean sieve | SCY80 | 0.75 |
| 106 | permanent magnetic | TXCT25 | |
| 108 | powder cleaner | SCQZ80 | 11 |
| 109 | permanent magnetic | TXCT25 | |
| 2. material grinding section | |||
| 206 | Impeller feeder | SYLW3 | 1.5 |
| 207 | series tear-circle hammer mill | SDH-ZW50C | 132 |
| 210 | seal screw conveyor | SWLL25 | 6 |
| 3. batching and mixing section | |||
| 313 | double shaft high efficient mixer | SSHJ.2 | 18.5 |
| 314 | scrapper conveyor | TGSU25 | 3 |
| 315 | Bucket elevator | TDTG48.28 | 5.5 |
| 316 | powder material clean sieve | SCQZ75×65×1 40 | 7.5 |
| 317 | permanent magnetic drum | TXCT30 | |
| 4. pelleting section | |||
| 408 | Pellet machine | SZLH420 | 110 |
| 410 | counter-current cooler | SKLN6 | 1.5 |
| 410-1 | crusher | SSLG20×170 | 15 |
| 415 | classic sieve | SFJH125 | 3 |
| 5. packing section | |||
| 501 | Finished product bin | ||
| 506 | automatic packing scale | SDBY-P | |
| 507 | seal conveyor machine | TFKB40 | 3 |
| 509 | pulse dust collector | TBLFa.24 | |
| 510 | seal machinery | 0.75 | |
| 6.auxiliary system | |||
| 601 | Air compressor | 22 | |
| 603 | liquid adding machine | SYTV32 | 3 |
| 604 | liquid adding pipeline | ||
| 606 | boiler system | ||
