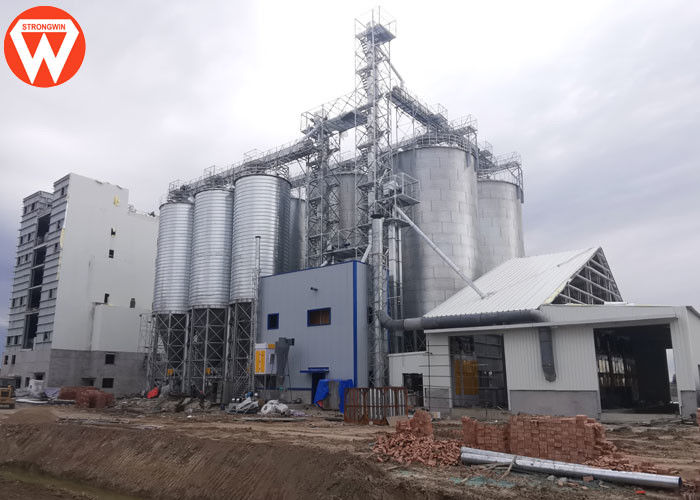

1200T Silos 30t/H Livestock Poultry Feed Production Line

1200T Silos 30t/H Livestock Poultry Feed Production Line
1200T Silos 30t/H Livestock Poultry Feed Production Line

Large Image :  1200T Silos 30t/H Livestock Poultry Feed Production Line

Product Details:
Place of Origin: Henan,China
Brand Name: Strongwin
Certification: CE,ISO
Model Number: 30t/h
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: container
Delivery Time: 30 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10sets/month
Detailed Product Description
Capacity: 30t/h Product Name: Livestock Poultry Feed Production Process Line With Eight 1200Ton Silos
Main Equipments: Crusher,mixer, Pellet Machine,pellet Cooler,sieve Pellets Diameter: 2-10 Mm
Bearing: SKF Motor: Siemens
High Light:

30t/H Poultry Feed Production Line

,

30TPH Feed Production Line

,

30TPH Poultry Feed Production Line

livestock Poultry Feed Production Process Line With Eight 1200Ton Silos

Main Machine of Animal poultry Feed Production process Line

Feed Grinder →Feed Mixer → Feed Pellet Mill → Counterflow Cooler → Feed Pellets Crumbler → Feed Pellets Grading Sieve → Automatic Weighing and Packing Machine

1. Raw Material intake
All the solid ingredients packed in bags for feed production would be received in plant by road. Their materials will be store in store godown. According to requirement these material will be dumped manually in dumping hopper and conveyed to the pre-cleaner through the mechanical conveyor system.

2. Pre-Cleaning
Pre-cleaning is a process of removing unwanted material from our ingredients. As we received the material, there will be possibility of having unwanted material such as iron pieces, jutes threads, oversize pieces which can jam our silos system. So for cleaning we use a pre-cleaning machine. Then these pre-cleaned materials are transpired to silos through mechanical conveyors and elevators.

3. batching
Batching is process of combining each and every material in a proportioning ratio called feed formula it is very important process of every feed plant. A Better and accurate ration of material will give is a better quality and a fully nutrients feed. This batching process may be a computerized controlled or may have manual control room to cut the cost of the plant.

4. Grinding
Grinding is a process of bracking solid ingredients to a required size. Finer the material higher will be the surface area exposure to heat and moisture to accomplish the gelatinization in conditioning. A fine granding material can transfer his maximum energy to the animal as compare to a course grinded material. It is a very energy consuming process.

5. Mixing
As the name implies "Mixing" is a process of combining blending of micro ingredients. A proper mixing can be defined with a unit called co-efficient of variation. Smaller the co-efficient of variation higher will be the quality of mixing. Our well designed mixer machine has such a great quality. Beyond this is a mixer machine should have a provision to mix liquid to it as we need oil or molasses addition to the feed.

6. Pelleting
Pelleting is a main step of any pelleting plant. It is a process of converting any powder to solid shape called pallet. In this process the powder material is extruded through a well designed die with the help of rollers to convert it in to pallets. The quality & production of pallet mill depends on so many parameters.
1.Feed formula 2. Die configuration 3. Quality of Granding 4. Quality of conditioning. No doubt every material can be converted into pellets.

7. cooling
Cooling is a process of removing heat. As we know during conditioning we add heat and moisture and also through palleting process heat generates by extrusion process. But the pallet should have a standard moisture and heat to attain its life of storage and make it safe from fungus. So we have to remove extra heat and moisture from the pallet. All this is done with the help of a well designed counter flow cooler.

8.Crumbling
Crumbling is a process in which pallets after cooling is broken in to small pieces to make it suitable for small chicks or hens. When there is no need of crumbling, we by-pass the feed directly to the screen with the help of By-pass Mechanism. A well designed crumbier should have capability to break the pellets without making much finer.

9. screening
Product coming out of crumbier is or their in pallets form (if we use by-pass) or in crumbs form. There are required to screen to remove fines and oversize particle. A double deck screeners are used to remove both fine and oversize particles. Fine and directed to pallet mill for repalleting while oversize particles are directed to crumbier for reprocessing. A well desired screener should have capability to remove fine and oversize to a desired percentages, And it should not be clog frequently.

10. packing
The end of process in every plant is bagging also called packing. After screening the finished products are filled in to bags. In small and medium plants, bagging can be carried out manually but for higher production it is batter to go for electronic bagging machine.

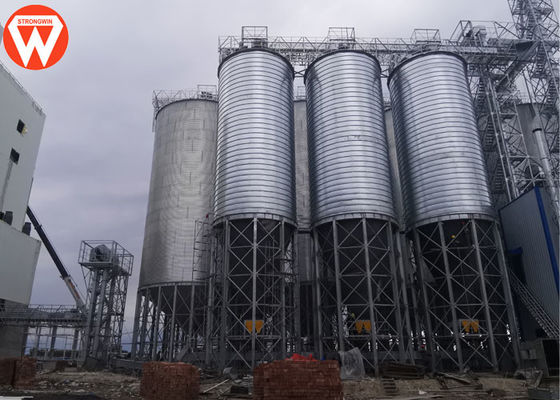

1200T Silos 30t/H Livestock Poultry Feed Production Line 0

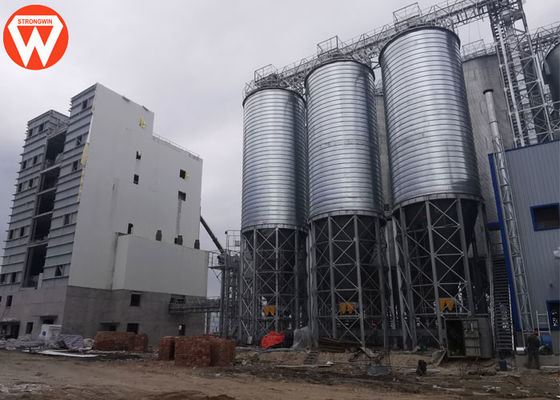

 1200T Silos 30t/H Livestock Poultry Feed Production Line 1


Technical Parameters of Animal Feed Production Line

20 T/H Animal Feed Pellet Production Line
No. Product name Model Qty Power(kw)
1. material receiving section
104 Bucket elevator TDTG48/28 2 5.5
105 granule material clean sieve SCY80 1 0.75
106 permanent magnetic TXCT25 1
111 rotary distributor TFPX.8 1 0.55
2. material grinding section
205 Impeller feeder SYLW3 1 1.50
206 Tear-circle hammer mill SDH-ZW50C 1 132
209 seal screw conveyor SWLL25 2 6.00
210 Impeller feeder SYLW3 1 1.5
211 Tear-circle hammer mill SDH-ZW80B 1 90
212 Fan 4-72-N04.5A 1 11
213 pulse dust collector TBLFa.42 1
3. batching and mixing section
311 small material feeding   1
312 pneumatic valve TZMQ32*32 1
313 316

Double shaft high efficient mixer
Double shaft high efficient mixer

SSHJ.2 SSHJ.4 1 1 18.5 30
317 Leveler RP 1
318 Vibration hammer   1
319 scrapper conveyor TGSU25 1 3.00
322 powder material clean sieve SCQZ80 1 11
4. pelleting section
404 vibration pneumatic hammer   4
407 Pellet machine SZLH420 2 220.00
409 counter-current cooler SKLN6 2 3.0
410 crusher SSLG20×170 2 30
412 Fan 4-72No6C 2 30
413 discharger SKL1000 2
415 Bucket elevator TDTG40.28 2 8
416 classic sieve SFJH125 2 6
5. packing section
507 automatic packing scale SDBY-P 2
508 seal conveyor machine TFKB40 2 6
510 pulse dust collector TBLFa.24 1
511 seal machinery   1 0.75
512 Fan 4-72-N04.5A 1 7.50
513 pulse dust collector TBLFa.30 1
6.auxiliary system
601 Air compressor   1 22.00
602 storage air tank   1
603 Dryer   1
604 liquid adding machine SYTV63 1 3.00
606 Steam boiler system 2T 1

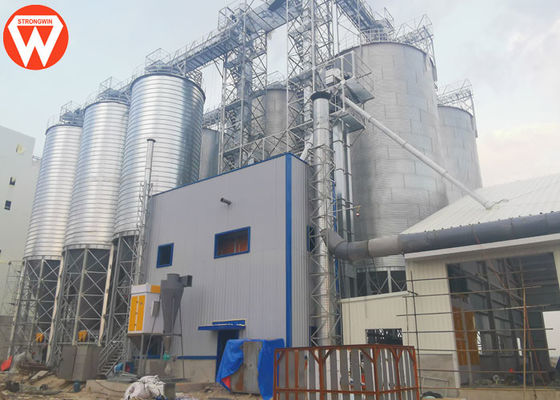

1200T Silos 30t/H Livestock Poultry Feed Production Line 2
