Product Details:
Payment & Shipping Terms:
|
Machine Type: | 1-2T/H Broiler Bird Animal Feed Pellet Machine For Kenya Farm | Raw Materials: | Corn, Flour Bran |
---|---|---|---|
Application: | Fram Broiler Bird Animal Feed | Product Capacity: | 1.5-2.5t/h |
Pellet Size: | 1.5-12mm | Voltage: | 220v,380v |
Main Motor Power: | 22kw | Conditioner Motor Power: | 1.5kw |
Highlight: | pellet making machine,feed pellet making machine |

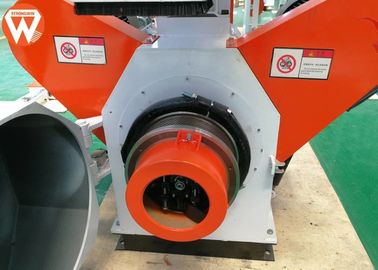

1.5-2.5T/H Broiler Bird Animal Feed Pellet Machine For Kenya Farm
Brief Introduction of feed pellet machine
This type SZLH250 is Ring die type feed pellet machine, has following advantages:
1. Pellet machine die roller has the Belt Transmission and Gear transmission.
2. Die roller fixed with stainless steel knife pelletizing device,
3. this pellet machine die roller is suitable for making high quality livestock and poultry, pig,
dog, chicken feeds and other materials in feed pelleting.
Widely applied large,medium and small aquaculture,grain feed factory,livestock farm,poultry farm,individual farmers, small and medium sized farms, as well as feed manufacturer plan
Technical Parameters
Items | SZLH250 |
Production Capacity | 1.5-2.5t/h |
Power of Main Motor | 22kw |
Power of Feeding Screw Motor | 0.75 KW |
Power of conditioner Motor | 1.5 KW |
Diameter of ring die | Φ250mm |
Speed of ring die(r/min) | 300rpm |
Speed of feeding screw | 12-120rpm |
Speed of stirrer | |
Pellet specification | φ2,φ3,φ4,φ4.5,φ5,φ6,φ8,φ10mm |
Amount of roller | 2 |
Diameter of roller | Φ110mm |
Shaping rate of pellet | ≥ 95% |
Pulverization rate of pellet | ≤12% |
Stability of pellet in the water | ≥20min |
Noise (dB(A)) | ≤85dB(A) |
Working temperature of ring die | ≤85℃ |
Working pressure of steam | 0.3Mpa |
Steam consumption(t/h) | 0.05 |
Temperature of steam(℃) | 130-150℃ |
Shape dimension | 2250*1430*2040mm |
Machine weight | |
Voltage | 3phase 380V,50Hz Can be customized) |
Control cabinet | Included |
