2.5T/H 22KW Animal Chicken Feed Pellet Machine With 120rpm Screw

2.5T/H 22KW Animal Chicken Feed Pellet Machine With 120rpm Screw
2.5T/H 22KW Animal Chicken Feed Pellet Machine With 120rpm Screw

Large Image :  2.5T/H 22KW Animal Chicken Feed Pellet Machine With 120rpm Screw

Product Details:
Place of Origin: China
Brand Name: Strongwin
Certification: CE,ISO,SGS
Model Number: SZLH250
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 3-7 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000sets per year
Detailed Product Description
Machine Name: 1.5-2.5T/H 22KW Animal Chicken Feed Making Machine Motor: Siemens
Power: 22KW Capacity: 1.5-2.5T/H
Apply To: Farm Animal Chicken Feed Service: 24 Hours Online
High Light:

22KW Chicken Feed Pellet Machine

,

2.5T/H Chicken Feed Pellet Machine

,

2.5TPH Animal Feed Pellet Machine

1.5-2.5T/H 22KW Animal Chicken Feed Making Machine



Brief introduction of Animal Chicken Feed Making Machine

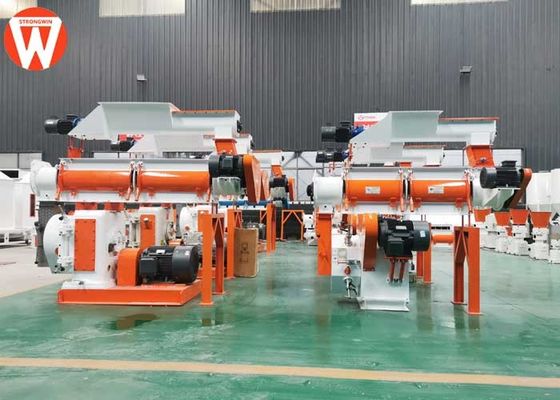

This is SZLH250 ring die feed pellet machine, capacity is 1.5-2.5t/h. Can be single used or apply to animal feed pellet line.
Make pellets for chicken, bird, duck, rabbit, pig, cattle, cow, sheep, horse etc. Popular among Customers



Advantages of Animal Chicken Feed Making Machine



Pellet machine head:stainless steel door cover and feed hopper,manganese steel blade, high-end cutter seat. Spindle and hoop empty shaft are all made of 40Cr forging materials, all adopt numerical control lathe machining, high precision.
High strength alloy steel heat treatment roller, precision ring die, it includes alloy steel ring die and stainless steel ring die, using LIYANG mature ring die center processing. The Shell using 8mm,10mm and 16mm steel plate, the highest
standard in the industry. Stainless steel scraper casting in the pelleting room. All the precision adjusting nuts are made of stainless steel screws to ensure that the pelleting chamber is not rusted.
The processing center of the pelleting chamber end plate is all digitally processed and has high precision. The safety pin adopt travel switch circuit to protect the machine.





Technical parameters of ring die 250 Animal Chicken Feed Making Machine



Items Technical Parameter (SZLH250)
Production Capacity 1.5-2.5t/h
Power of Main Motor 380V 50Hz 3 Phase 22 KW (Can be customized)
Power of Feeding Screw Motor 0.75 KW
Power of Conditioner 1.5 KW
Inner Diameter of ring die Φ250mm
Efficient width of ring die 80mm
Speed of ring die 300rpm
Speed of feeding screw 12-120rpm
Speed of Conditioner 350rpm
Pellet specification φ2,φ3,φ4,φ4.5,φ5,φ6,φ8,φ10mm
Amount of roller 2
Diameter of Roller Φ110mm
Pellet Ratio of Briquetting ≥ 95%
Percentage of powdered Pellet ≤12%
Stability of pellet in the water ≥20min
Noise ≤85dB(A)
Working temperature of ring die ≤85
Working pressure of steam 0.3Mpa
Steam consumption 50kg/H
Temperature of steam 130-150
Packing Size (length×width×height) 2450*1550*2200mm
Machine Size 2250*1430*2040mm
Net/Gross Weight 1150KG/1445kg



2.5T/H 22KW Animal Chicken Feed Pellet Machine With 120rpm Screw 0



Have products in Stock. Welcome Contact us for detail information !
