|Product Name:||Two-Layer Conditioner Broiler Feed Pellet Machine||Motor:||Siemens Motor|
|Bearing:||SKF Bearing||Voltage:||220v,380v, Or Customized|
|Raw Materials:||Wheat, Maize, Soybean, Grass Etc||Can Make Feed For:||Pig,cow, Sheep Etc|
pellet making machine,
feed pellet making machine,
animal pellet machine

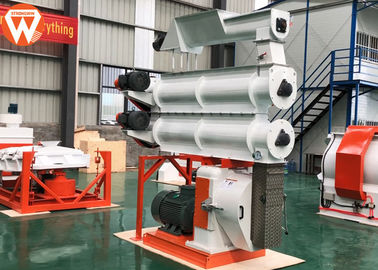

Compact Layout SKF Bearing Bird Feed Manufacturing Process Animal Food Making Machine
Application of Animal food making machine
SZLH series ring die pellet making machine is the main machine of making granular fodder. can be used to make various roughage and refined fodder in livestock farm and feed mill.
We can provide the mould size: 1,2,3,4,5,6,8,10,12mm for choose
a. For pig, the pellet diameter is usually ø3.5-6.5mm.
b. For cattle, the pellet diameter is usually ø4.5-8mm.
c. For chicken, pellet diameter is usually ø3.2mm.
d. For fish, pellet diameter is usuallyø2.0, ø2.5, ø3.0mm.
e. For shrimps, pellet diameter is usually ø1.0-ø3.5mm.
Advantage of SZLH bird feed manufacturing process machine
1. SZLH use gear drive,safety and stability of transmission;
2. Feeder uses frequency conversion motor, it can be adjusted within a certain scope according to the need of production;
3. The safe protection device is consist of interlock device, outer machine discharging device and over-load protection device, to ensure the safe and reliable;
4. Install magnetic separation and removal iron equipment, to prevent the iron impurities that mixed in fodder from entering into the suppression of granulation chamber;
5. Extended stainless steel conditioner, with long conditioning and cooking time;
6. The special designed lubrication oil return system, to ensure the bearing lubrication;
7. The ordinary conditioner, thermal insulation conditioner or double-shaft differential conditioner can be chose according to user’s requirement;
Technical Parameters of animal food making machine
|Power of Main Motor||110kw|
|Power of Feeding Screw Motor||1.5kw|
|Power of conditioner Motor||5.5kw|
|Diameter of ring die||Φ420mm|
|Speed of ring die(r/min)||287r/min|
|Speed of feeding screw||12-120rpm|
|Speed of stirrer||350r/min|
|Amount of roller||2|
|Diameter of roller||Φ206mm|
|Shaping rate of pellet||≥ 95%|
|Pulverization rate of pellet||≤12%|
|Stability of pellet in the water||≥20min|
|Working temperature of ring die||≤85℃|
|Working pressure of steam||0.3Mpa|
|Temperature of steam(℃)||130-150℃|
|Voltage||3phase 380V,50Hz Can be customized)|
