| Name: | Ring Die Poultry Pellet Mill Machine | Capacity: | 2-4t/h |
|---|---|---|---|
| Raw Materials: | Grain, Grass | Pellet Diameter: | 2.5-12mm |
| Main Motor Power: | 37kw | Application: | Poultry Animal Feed |
| Highlight: | 37kw Poultry Feed Pellet Machine,Animal Feed Pellet Machine |
||

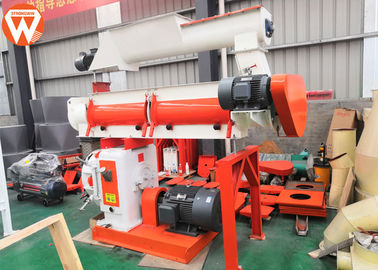

SZLH320 Single Layer Conditioner Ring Die Poultry Pellet Mill Machine
Description of Ring Die Poultry Pellet Mill Machine
Frequency conversion feeding to ensure homogeneous material,lengthen and thickening stainless steel materials,dig open door intensity conditioner, more than 2-4 times volume capacity, long curing time, the return rate of feed improve 3-5%, adopt steam injection equipment to prevent the steam reflection.
Series ring die pellet mill main engine drives, high precision gear, ring die in quick detaching encircling hoop type, output higher 20% than belt drive
Equipped with steam automatic regulatory system to keep refining temperature constant
The complete machine transmission parts include electric motor with Switzerland “SKF” high quality bearing, ensure high-efficiency, stable and low noise drive
Larger type strengthen feeding conditioner in entire stainless steel with frequency speed control, ensure the high quality of pellet feed.
Adopt international advanced ring die processed by heat treatment vacuum furnace, lengthen useful life and pellet is smooth with high quality.
International advanced level compensated serpentine spring coupling, novel and compact structure, safe, low noise and low machinery failure
Adopt international advanced piping system and import pressure regulating valve.
With full stainless steel door, flume, and pull cutter which is convenient, reliable
Permanent magnet device with high performance. Customize pellet mill with double layers or three layers.
Technical Parameters of Ring Die Poultry Pellet Mill Machine
| Items | SZLH320 |
| Production Capacity | 2-4t/h |
| Power of Main Motor | 37kw |
| Power of Feeding Screw Motor | 1.5kw |
| Power of conditioner Motor | 2.2kw |
| Diameter of ring die | Φ320mm |
| Speed of ring die(r/min) | 336r/min |
| Speed of feeding screw | 12-120rpm |
| Speed of stirrer | 320r/min |
| Pellet specification | φ2,φ3,φ4,φ4.5,φ5,φ6,φ8,φ10mm |
| Amount of roller | 2 |
| Diameter of roller | Φ165mm |
| Shaping rate of pellet | ≥ 95% |
| Pulverization rate of pellet | ≤12% |
| Stability of pellet in the water | ≥20min |
| Noise (dB(A)) | ≤85dB(A) |
| Working temperature of ring die | ≤85℃ |
| Working pressure of steam | 0.1-0.4Mpa |
| Steam consumption(t/h) | ≥0.3 |
| Temperature of steam(℃) | 130-150℃ |
| Voltage | 3phase 380V,50Hz Can be customized) |
| Control cabinet | Included |
