| Product Name: | SZLH420 Chicken Poultry Feed Pellet Production Line | Capacity: | 10T/H |
|---|---|---|---|
| Pellet Size: | 2-10mm | Power: | 550KW |
| Main Machine: | Crusher,mixer,pellet,crumbler,cooler,screener Machine | Service: | Engineers Design And Installation |
| High Light: | 10T/H Feed Pellet Production Line,Feed Pellet Production Line 550KW,10mm Feed Pellet Production Line |
||
SZLH420 10 T/H Chicken Poultry Feed Pellet Production Line

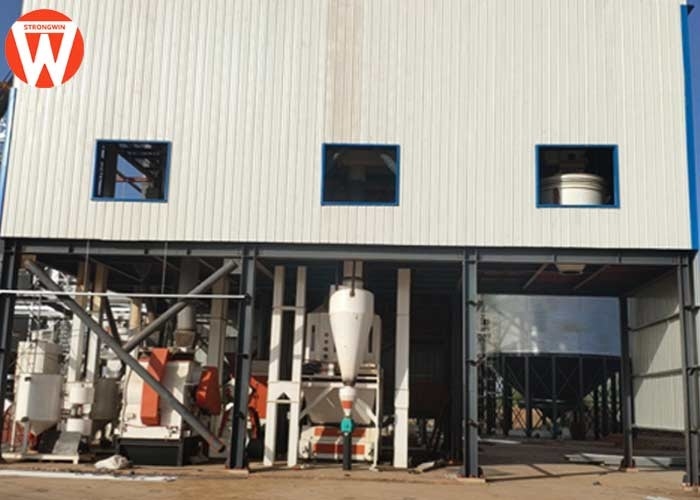

This is Strongwin manufacture SZLH420 poultry feed pellet line installation in Africa.
According to Customers need, including Main equipment workshop, Steel structure and silos.
Strongwin factory supply : Complete feed pellet equipment, steel structures and silos. Turnkey Projects for Customers !
Help Customers to Build up feed factory.
Main Technical Parameters of Poultry Feed Pellet Production Line
| 10 T/H Automatic Feed Pellet Production Line | |||
| No. | Product name | Model | Power(kw) |
| 1. material receiving section | |||
| 102 | pulse dust collector | TBLFa.18 | |
| 105 | granule material clean sieve | SCY80 | 0.75 |
| 106 | permanent magnetic | TXCT25 | |
| 108 | powder cleaner | SCQZ80 | 11 |
| 109 | permanent magnetic | TXCT25 | |
| 2. material grinding section | |||
| 206 | Impeller feeder | SYLW3 | 1.5 |
| 207 | series tear-circle hammer mill | SDH-ZW50C | 132 |
| 210 | seal screw conveyor | SWLL25 | 6 |
| 3. batching and mixing section | |||
| 313 | double shaft high efficient mixer | SSHJ.2 | 18.5 |
| 314 | scrapper conveyor | TGSU25 | 3 |
| 315 | Bucket elevator | TDTG48.28 | 5.5 |
| 316 | powder material clean sieve | SCQZ75×65×1 40 | 7.5 |
| 317 | permanent magnetic drum | TXCT30 | |
| 4. pelleting section | |||
| 408 | Pellet machine | SZLH420 | 110 |
| 410 | counter-current cooler | SKLN6 | 1.5 |
| 410-1 | crusher | SSLG20×170 | 15 |
| 415 | classic sieve | SFJH125 | 3 |
| 5. packing section | |||
| 501 | Finished product bin | ||
| 506 | automatic packing scale | SDBY-P | |
| 507 | seal conveyor machine | TFKB40 | 3 |
| 509 | pulse dust collector | TBLFa.24 | |
| 510 | seal machinery | 0.75 | |
| 6.auxiliary system | |||
| 601 | Air compressor | 22 | |
| 603 | liquid adding machine | SYTV32 | 3 |
| 604 | liquid adding pipeline | ||
| 606 | boiler system | ||
