| Name: | Poultry Chicken Feed Pellet Making Machine | Apply To: | Animal Poultry Chicken Feed |
|---|---|---|---|
| Capacity: | 2-8T/H | Main Power: | 55KW |
| Motor: | Siemens | Bearing: | SKF |
| High Light: | Poultry Feed Pellet Making Machine,8T/H Feed Pellet Making Machine,55KW Feed Pellet Making Machine |
||

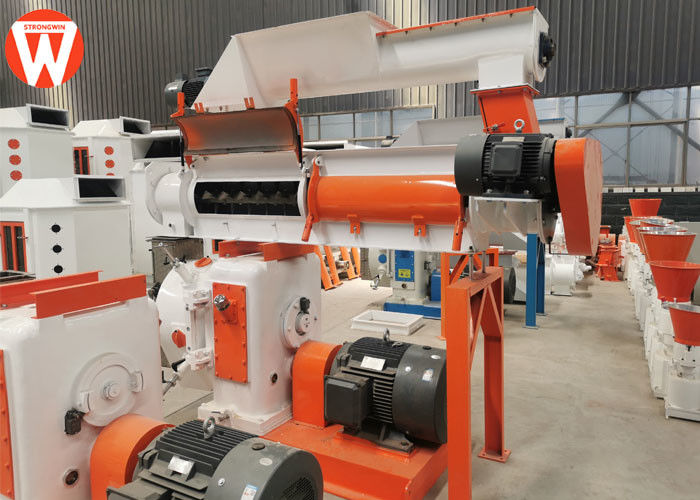

SZLH350 55KW Ring Die Poultry Chicken Feed Pellet Making Machine
SZLH350 granulator is a main equipment that presses feed of pellet, which is apply to big and medium size of factory to produce high quality pellet.
This machine has ring die of different diameters, such as φ2, φ3, φ4, φ4.5, φ5, φ6, φ8 and φ10. The customer can Choose according to their own different requirement.
Technical Parameters of Poultry Chicken Feed Pellet Making Machine
| Item | SZLH320 | SZLH350 | SZLH400 | SZLH420 | SZLH508 |
| Capacity | 2-4T/H | 2-8T/H | 2-10T/H | 3-12T/H | 4-20T/H |
| Main power | 37KW | 55KW | 75/90KW | 110KW | 132/160KW |
| Power of feeding auger | 0.55KW | 1.5KW | 1.5KW | 1.5KW | 1.5KW |
| Power of conditioner | 2.2KW | 3KW | 3KW | 5.5KW | 7.5KW |
| Inner diamater of die | 320mm | 350mm | 400mm | 420mm | 508mm |
| Die speed | 305RPM | 336RPM | 307RPM | 287RPM | 287RPM |
| Feeder auger speed | 12-120RPM | ||||
| Conditional speed | 350RPM | ||||
| Pellet size | 2-10mm | ||||
| Roller number | 2 | ||||
| Roller diamater | 140mm | 165mm | 190mm | 206mm | 222mm |
| Pellet ratio of briquetting | ≥95% | ||||
| Percentage of powdered pellets | ≤12% | ||||
| Stability of pellet in the water | ≥20MIN | ||||
| Noise | ≤86db(A) | ≤90db(A) | |||
| Die working temperature | ≤85°C | ||||
| Steam working pressure | 0.1-0.4Mpa | ||||
| Steam consumption t/h | ≥0.3 | ≥0.3 | ≥0.4 | ≥0.5 | ≥1 |
| Steam temperature | 130-150°C | ||||
Conditioner Paddle, stainless steel type

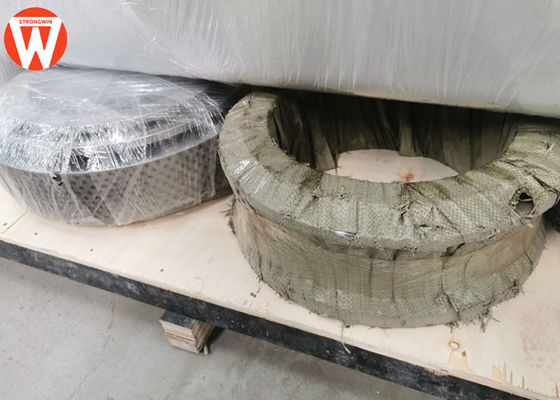

Durable use ring die and roller
For high quality livestock and poultry animal feed pellets.
Products in Stock
Provide users with economical and rational design
Professional installation and training service
